4-3

CHAPTER4

SUPPLIES Paper

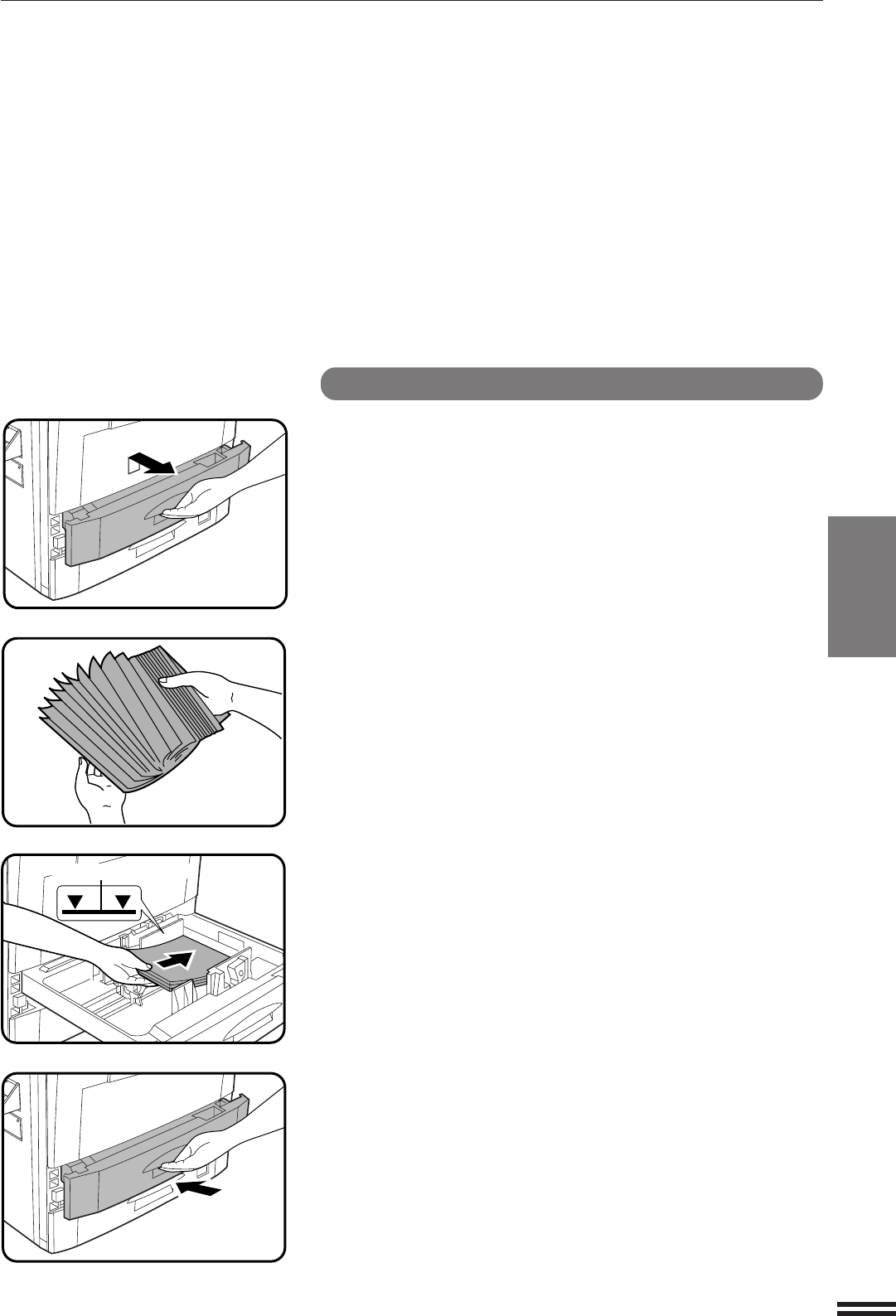

Loading paper in paper trays 1 and 2

Gently lift and pull out the paper tray.

Only use paper within the Sharp specification and

follow the paper manufacturer’s instructions regarding

fanning and loading the paper.

●

The tray holds 500 sheets of paper.

Do not load paper above the maximum height line.

Push the paper tray firmly back into the copier.

PAPER

Maximum height line
