General Information

- Controls and indicators -

Controls and indicators (continued)

„

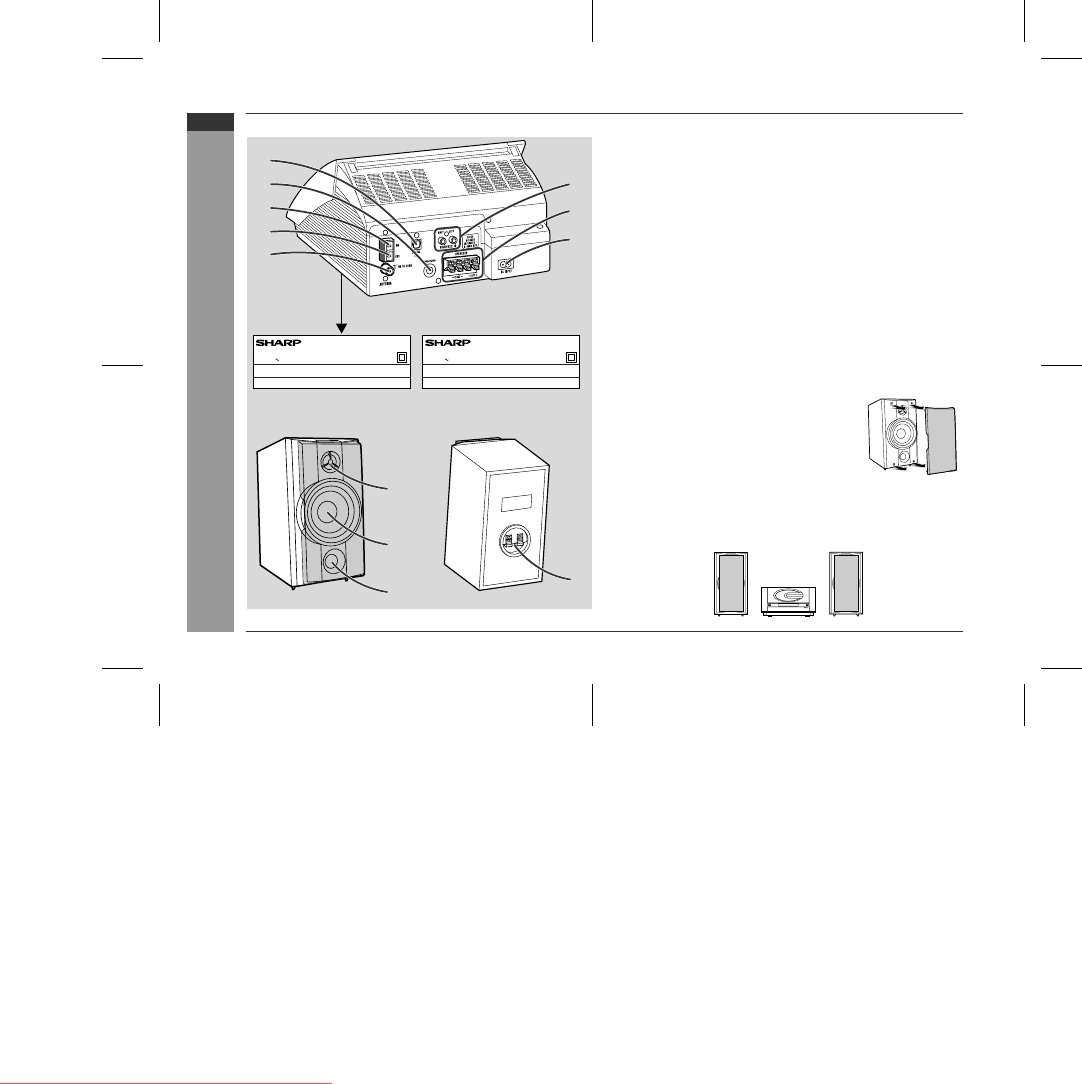

Rear panel

Reference page

1. CD Digital Output Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

2. Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3. AM Aerial Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 7

4. Aerial Earth Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 7

5. FM 75 Ohms Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . 6, 7

6. Video/Auxiliary (Audio Signal) Input Sockets . . . . . . . . . . 27

7. Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 7

8. AC Power Input Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 7

„

Speaker system

1. Tweeter

2. Woofer

3. Bass Reflex Duct

4. Speaker Terminals

Speaker grilles are removable:

Placing the speaker system:

There is no distinction between the right and the left speakers.

MODEL NO. XL-1500H

COMPACT AUDIO SYSTEM

230 V

50 Hz 30 W

SERIAL NO.

SHARP CORPORATION

MODEL NO. XL-1600H

COMPACT AUDIO SYSTEM

230 V

50 Hz 30 W

SERIAL NO.

SHARP CORPORATION

Make sure nothing comes into contact with the

speaker diaphragms when you remove the

speaker grilles.

Left speaker

Right speaker
