8 – 8

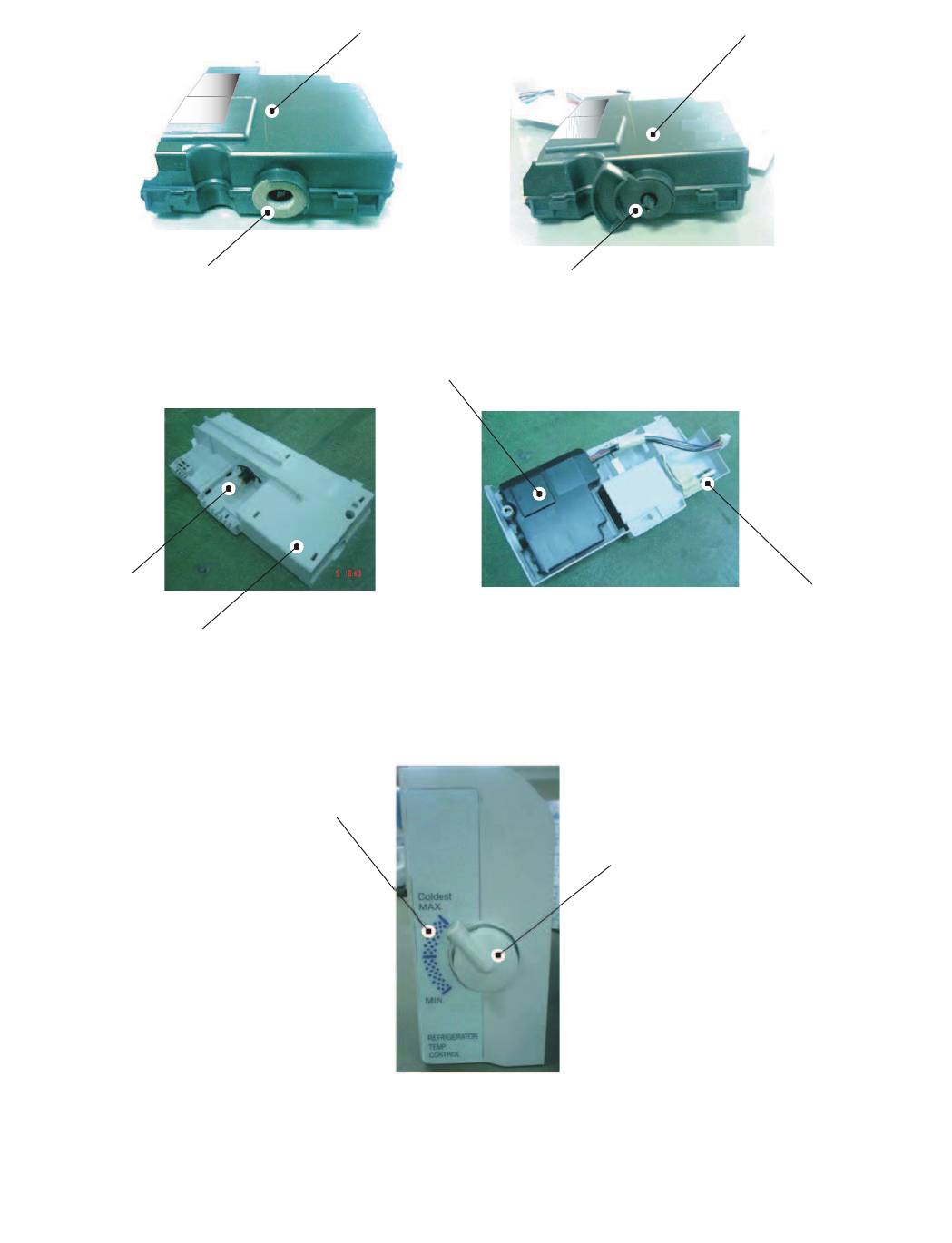

5. Assemble Lamp with R-C Box cover then fix with 2 tapping screw.

6. Stick Knob sealer on R-C Box cover and then insert Knob joint to R-C Box cover.

7. Assemble the PWB ass'y with R-C Box cover. And place the R-Thermistor on the groove of R-C Box cover.

8. Insert Lead R-C Box to Lamp.

9. Insert R-Control knob to R-C Box cover.

10.Stick Control Label on R-C Box cover.

R-C Box cover

Knob sealer

R-C Box cover

Knob joint

Figure A-12

PWB holder

R-Thermistor

R-C Box cover

Lamp

Figure A-13

Control label

R-Control knob

Figure A-14

!"#$% &'$( &#$) &'$* &#$+ &'$, &#-( &#-)
