[3] R CONTROL COV. ASS'Y

1. Insert Lead R-Thermistor to Lead R-C Box.

2. Inset Lead R-C box to PWB L ass'y.

3. Assemble the PWB L ass’y with PWB holder A and then assemble the PWB holder A with PWB holder B.

4. Stick the R-control AL on PWB holder A/B ass’y.

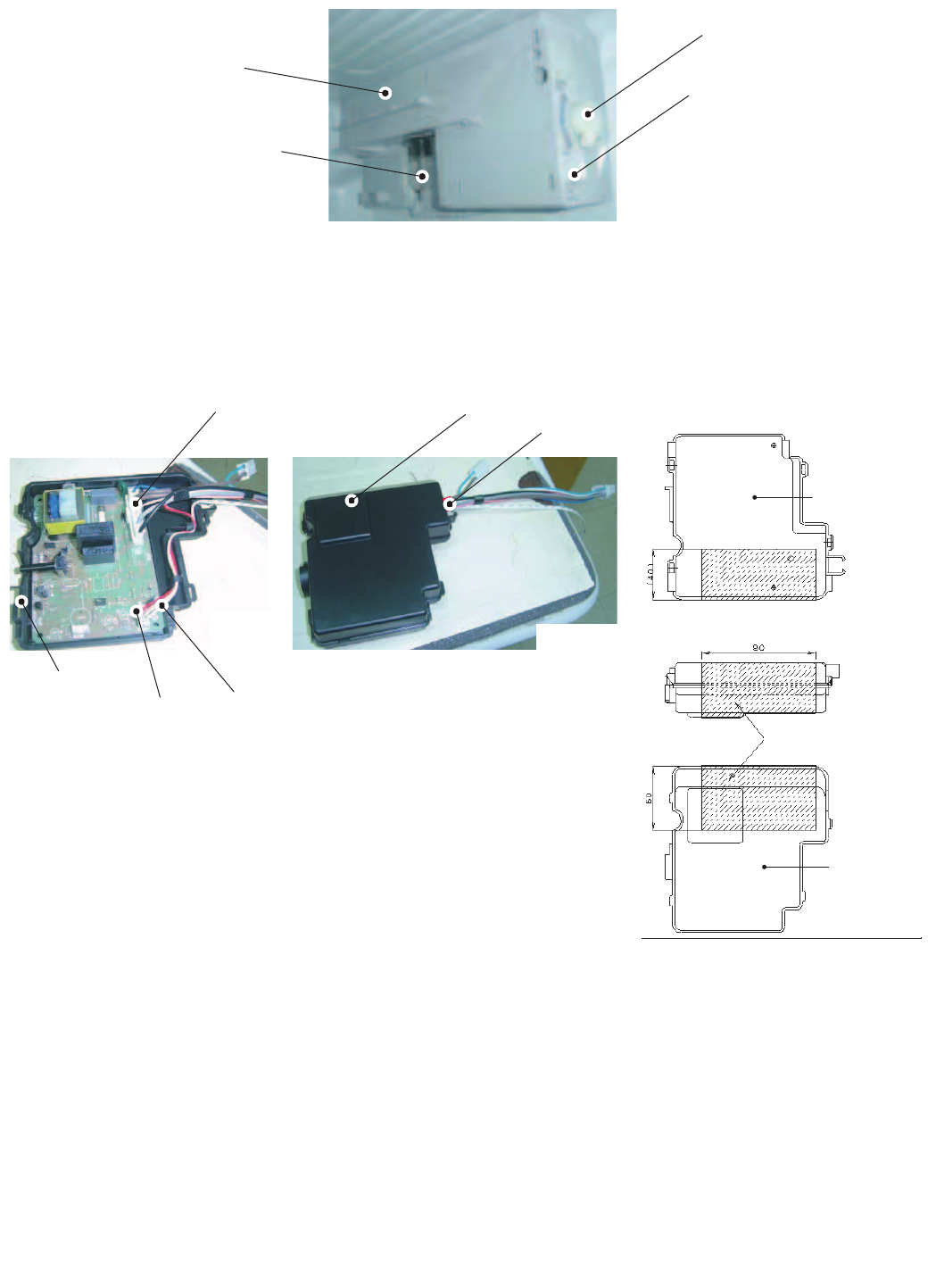

Lamp

R-C Box cover

Control label

R-Control knob

Figure A-10

Lead R-Thermistor( White wire)

Lead R-C Box

PWB holder B

PWB holder A

Lead sealer

Figure A-11

PWB holder A

R-control AL

PWB holder B

!"#$% &'$( &#$) &'$* &#$+ &'$, &#-( &#-)
