Step 9

BO21

● Parts Needed For ●

Top Front Trim

1

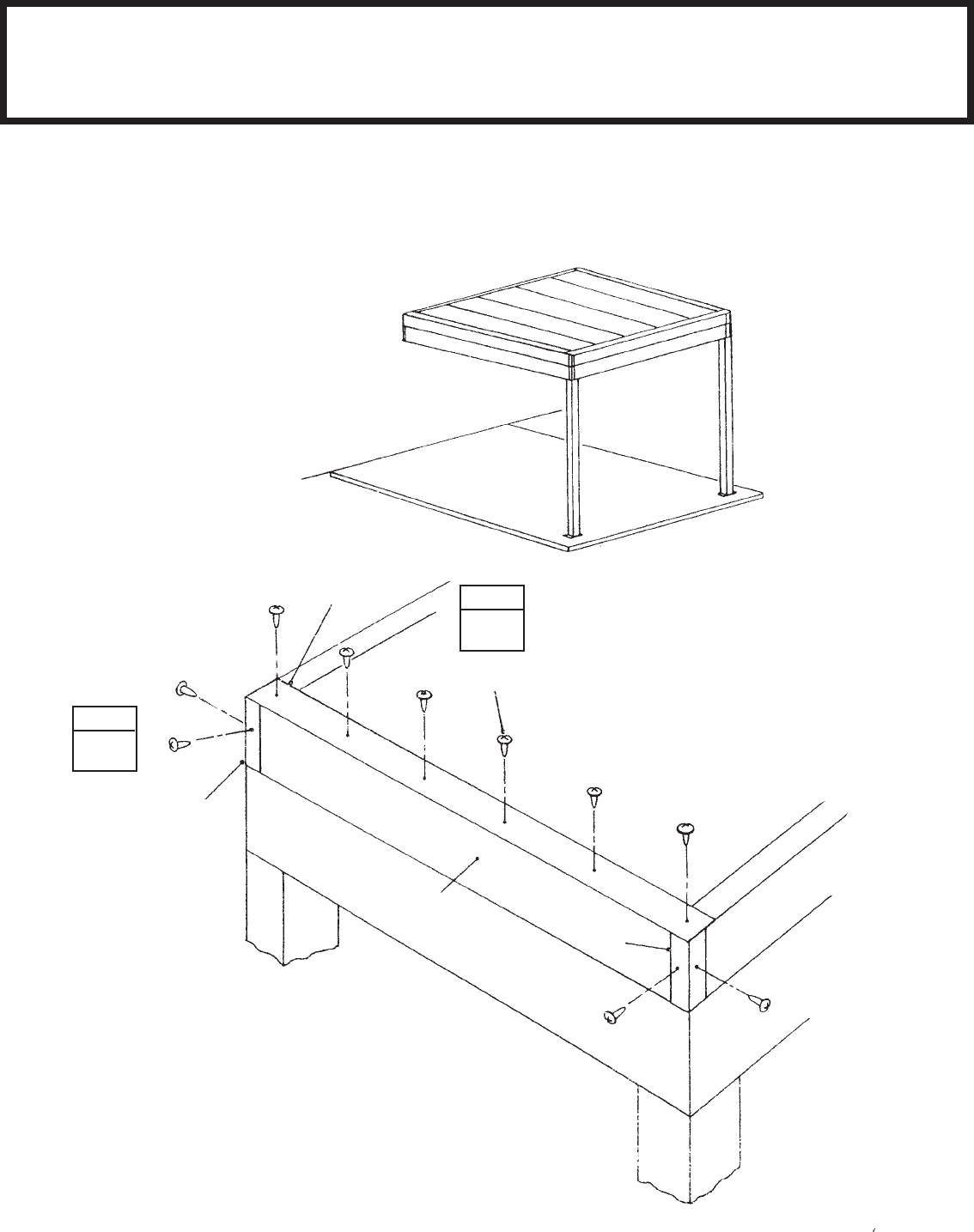

Position top front trim to ends of

roof panels, overlapping top left and

right end trim and fasten using six

#10 screws.

2 Cover seams where trims meet at

the corners with top trim caps using

four screws.

21

●●

●●

● 9664 Top Front Trim (one)

● ●

● ●

● 9655 Top Trim Cap (two)

#10Ax3/8" (10 mm)

Screw

9655

9664

9655

Overlap

STEP

1

#10Ax3/8" (10 mm) Screw

STEP

2
