Step 8

BO20

● Parts Needed For ●

Top Left and Right

End Trim

●●

●●

● 9667 Top Left End Trim (one)

●●

●●

● 9668 Top Right End Trim (one)

20

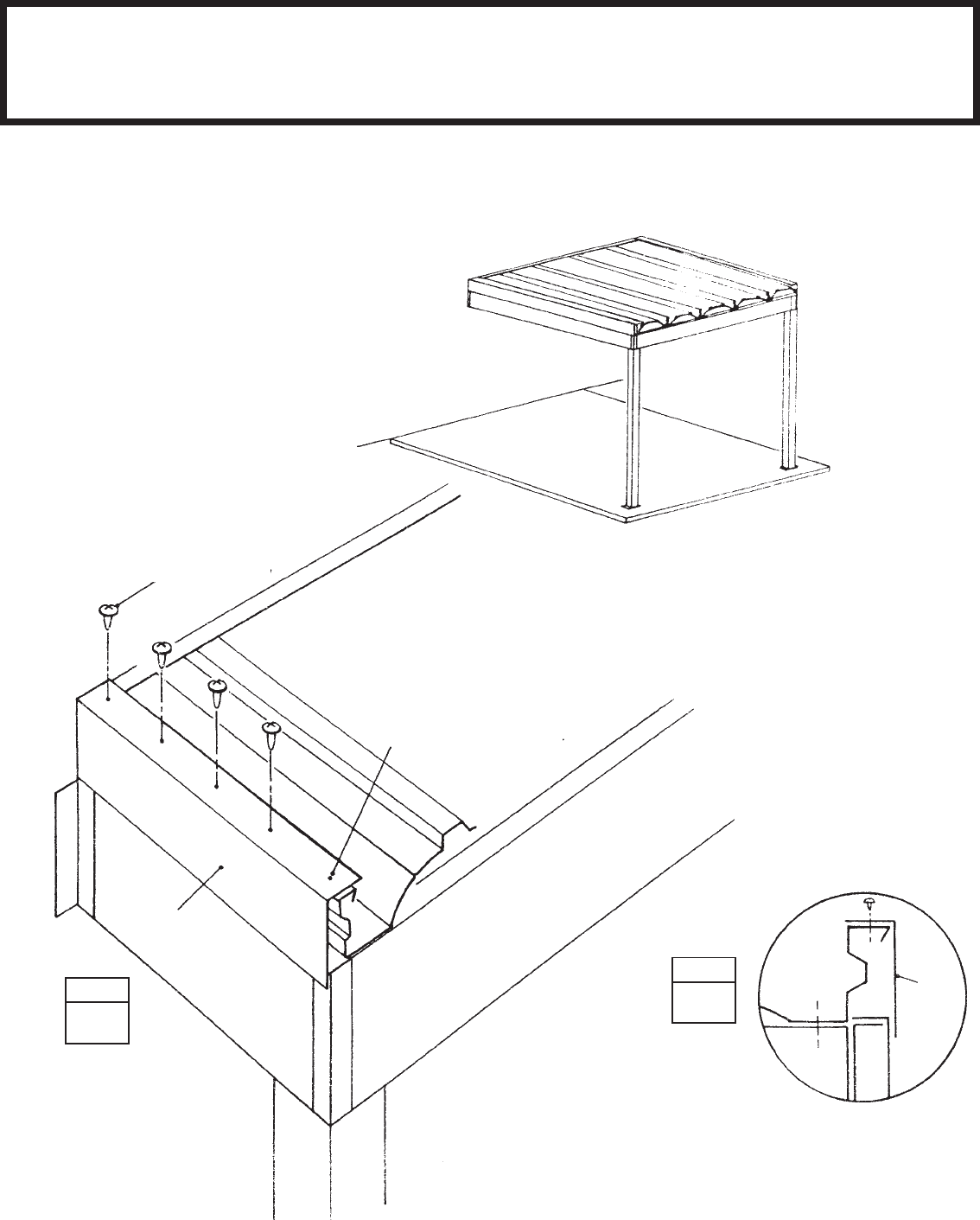

1 Fasten top right end trim to the

outer right roof panel rib using four

#10Ax3/8" (10 mm) screws. Do not

fasten the bottom hole until the next

step.

2 Repeat procedure for the top left

end trim on the outer left roof panel

rib.

END

VIEW

#10Ax3/8" (10 mm) Screw

Do not fasten until next step

9667

9668

STEP

2

STEP

1
