Installing and Securing the Screen into Place

The screens can be installed either with or without attached operating

elements, as a table top terminal or on a tubular stand. Securing into Place

Installing the BA72A into Place (Table Top Version)

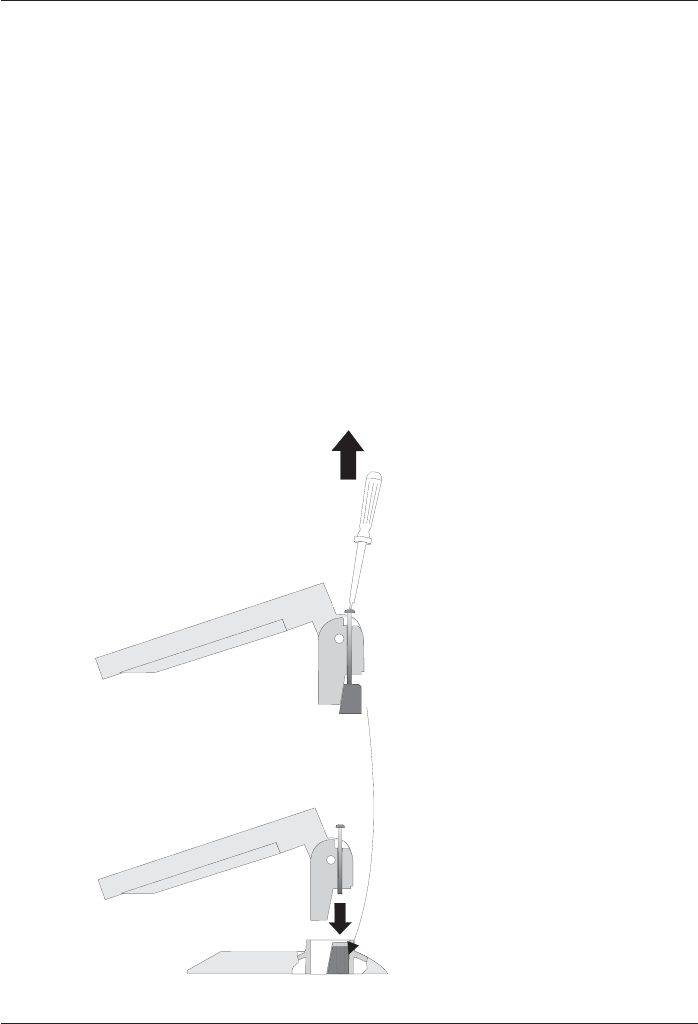

Remove the footed

stand and screen

element from the card-

board packaging. Tilt

the screen backwards.

Turn the fastening

screw on the screen

with a crosstip screw-

driver until the connec-

ting part is loosened.

Then insert it into the

footed stand.

Insert the joint of the

screen element into

the footed stand.

GB - 23
