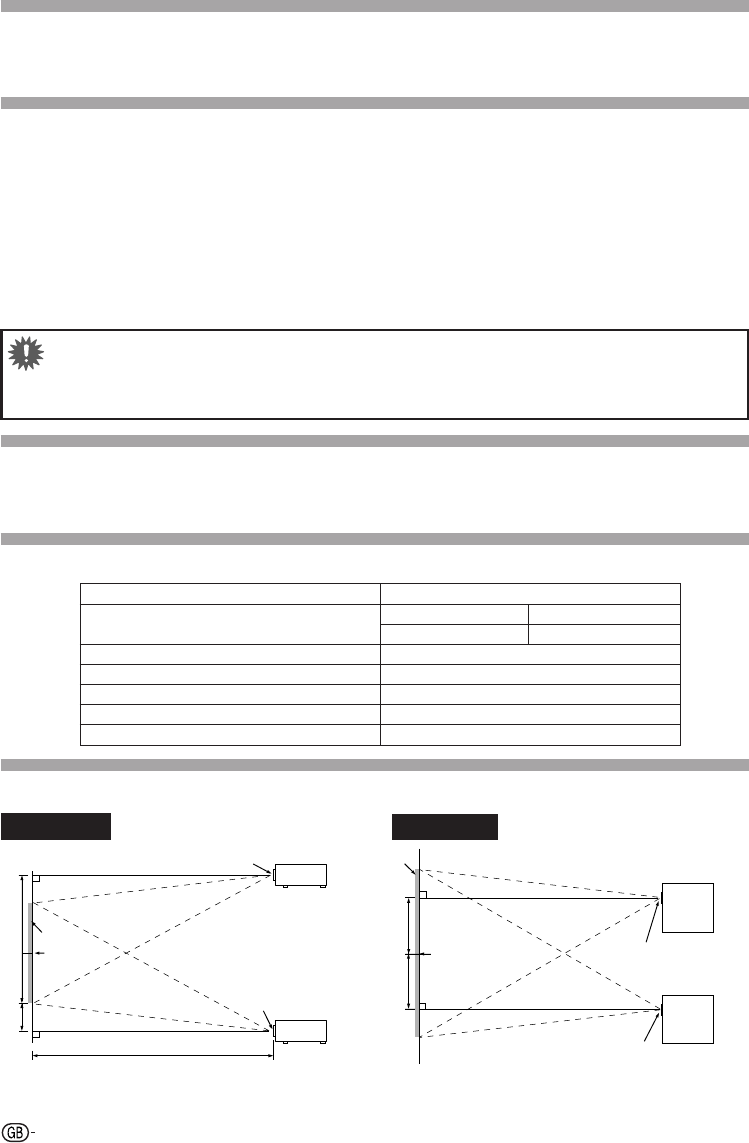

Adjust the picture size and focus

Refer to “Image Projection” in the projector operation manual for information on adjusting the focus and

picture size.

Handling Precautions

● Do not disassemble this lens.

Please refer to your authorized dealer for any maintenance and inspections requiring an open cabinet.

● Touching any other internal part could cause personal injury or machine malfunction.

● Do not touch any glass or protruding part of the lens. This may cause personal injury and reduced

performance of the projector.

● When maintaining the projector the following points should be noted.

• When cleaning the lens be sure to use a commercial air blower or lens cleaning paper (used in cleaning

glasses and cameras).

• The surface of the lens is very delicate. Do not allow hard objects to bump or rub against it.

Caution

● Be sure not to attach this lens to the projector when storing or carrying the projector. This

may cause damage to them.

Supplied Accessories

• Lens cap (front) × 1 • Lens cap (rear) × 1

• Installation manual • Operation manual (this manual)

Specifications

Model

Picture size (diagonal)

Focal length

F no.

Throw ratio

Weight

Depth of projector with the lens attached

AN-P8EX

XG-P610X series 80'' to 150'' (4:3)

XG-P560W series 80'' to 140'' (16:10)

11.6 mm (

'')

2.5

1:0.8

Approx. 2,500 g (5.5 lbs.)

711 mm (28'')

Side View

Top View

Upper lens shift

position

(Desktop setup)

Lower lens shift

position

(High mount setup)

Rightmost lens

shift position

Leftmost lens

shift position

Lens center

Screen

Center of screen

Lens center

Center of

screen

90°

Picture size and projection distance chart

ANP8EX_Lens_E.p65 08.2.20, 8:02 PM2
