7-16

CHAPTER7

OPTIONAL EQUIPMENT

Finisher (AR-FN1N)

FINISHER (AR-FN1N)

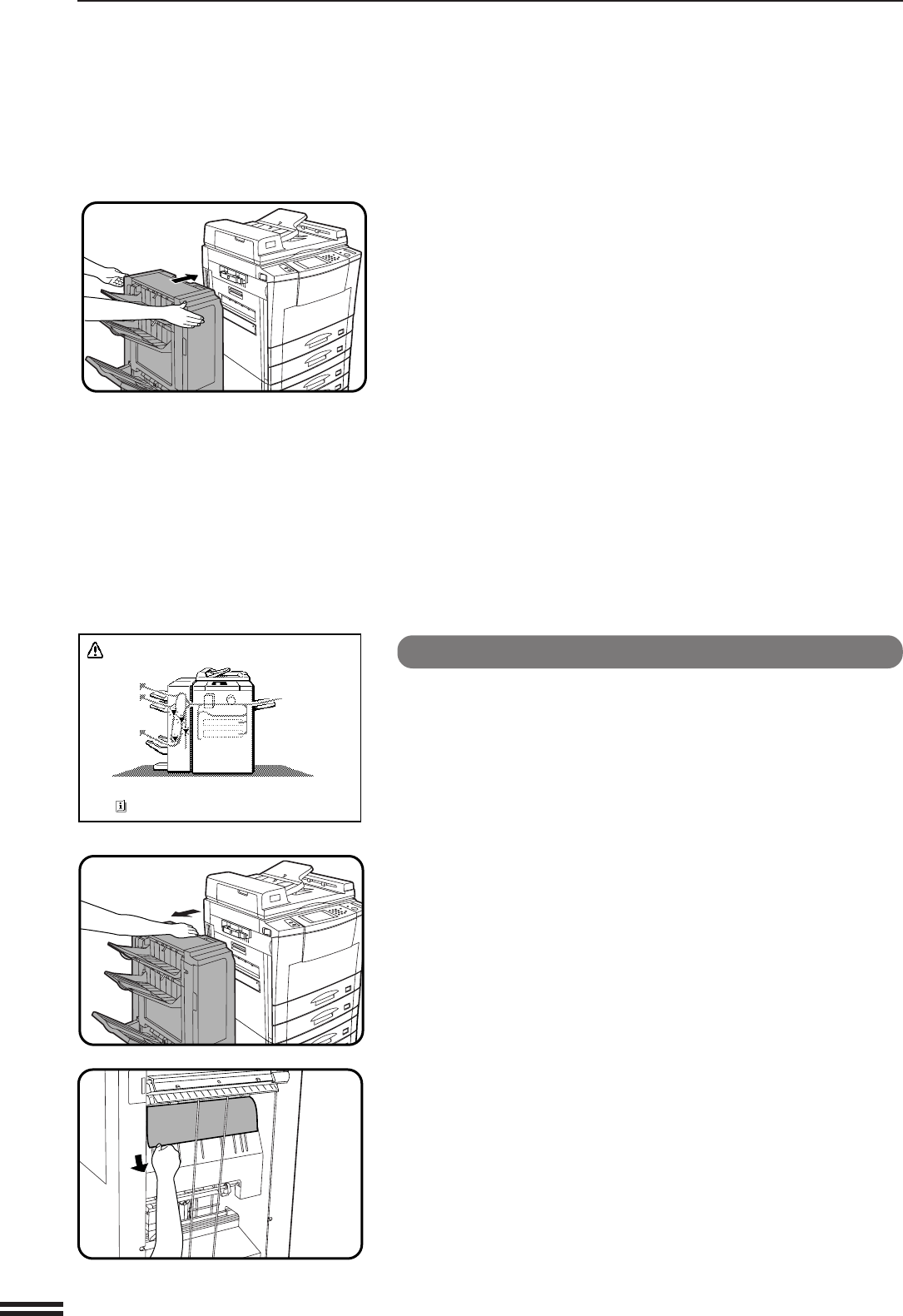

Push the finisher toward the copier and latch it in place.

●

Confirm that the misfeed display is cleared.

Misfeed in the lower transport area

While holding the finisher release lever, slide the finisher

away from the copier.

Remove the misfed paper from the paper transport area

as shown in the illustration.

A MISFEED HAS OCCURRED.

CLEAR INDICATED AREA.

PRESS FOR RECOVERY INSTRUCTIONS.
