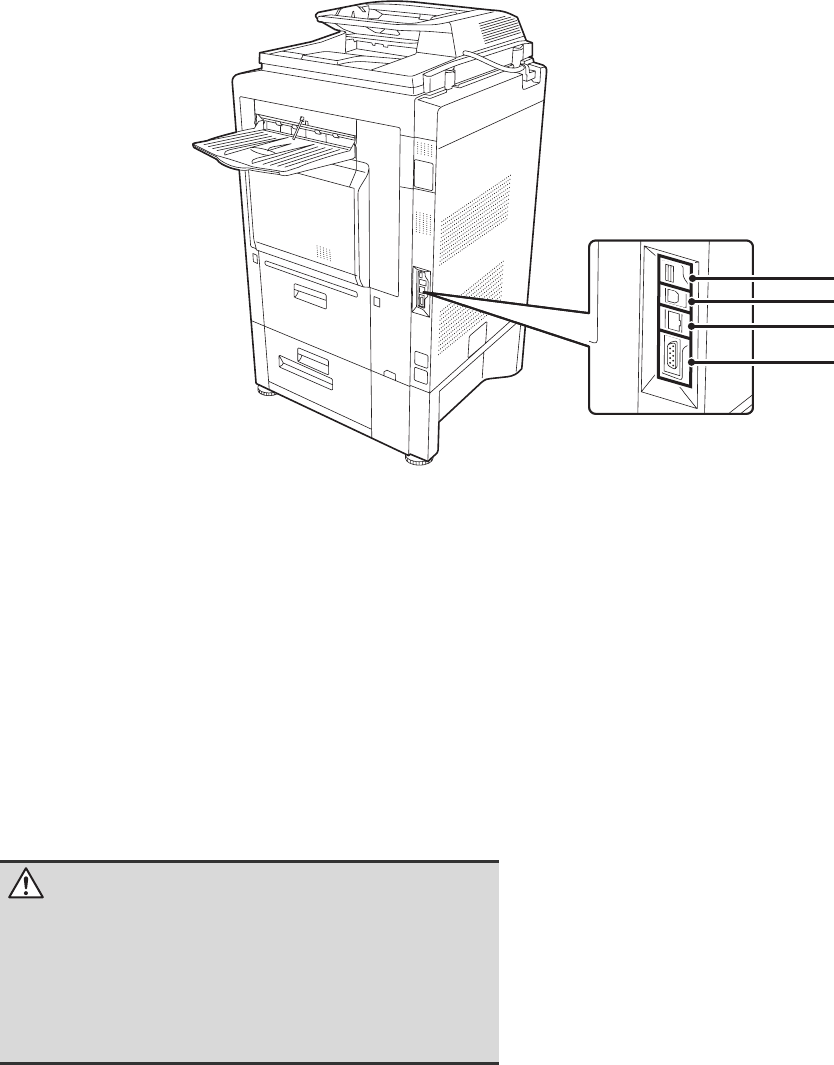

CONNECTORS

(1) USB connecter (A type)

This is used to connect a USB hub or USB memory

device to the machine.

For the USB cable, use a shielded type cable.

(2) USB connecter (B type )

A computer can be connected to this connector to use

the machine as a printer.

For the USB cable, use a shielded type cable.

(3) LAN connecter

Connect the LAN cable to this connector when the

machine is used on a network.

For the LAN cable, use a shielded type cable.

(4) Service-only connector

(1)

(2)

(3)

(4)

Caution

Connecting a cable to this connector may cause the

machine to malfunction.

Important note for service technicians:

The cable connected to the service connector must be

less than 3 m (118") in length.
