User’s Guide 10-11

At the Offset Catch Tray

Clearing Paper Jams

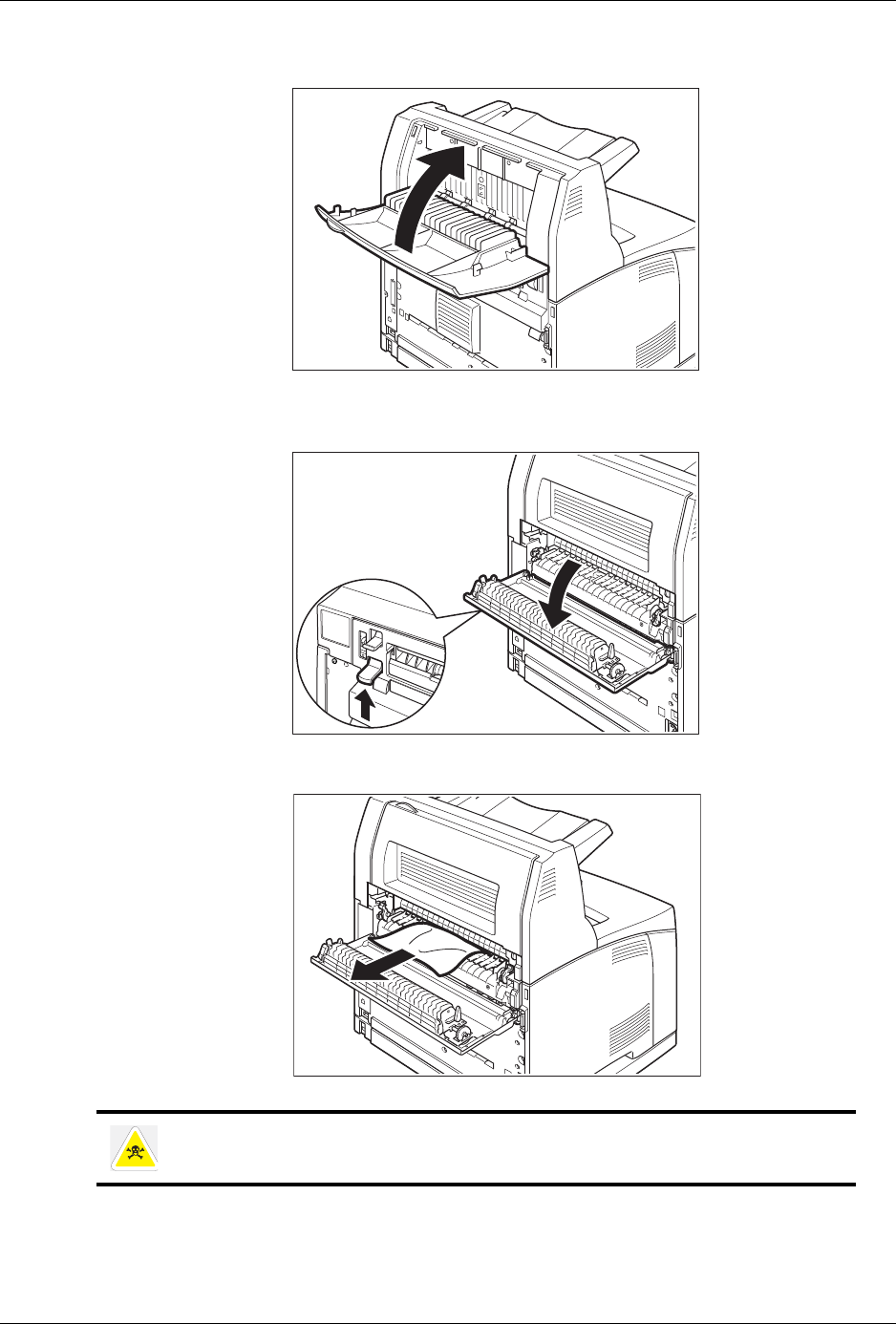

3. Close the Offset Catch Tray cover.

4. Lift up the second lever from the top left corner of the back of the printer to open the rear

cover.

5. Remove any jammed paper. If paper is torn, check for any remaining torn pieces of paper.

The Fuser Unit is hot. Be careful not to touch it as you can get burned. Make sure that the levers

at both ends of the Fuser Unit are returned to the positions they were in before clearing the jam.
