AL-1551 DISASSEMBLY AND ASSEMBLY 8-10

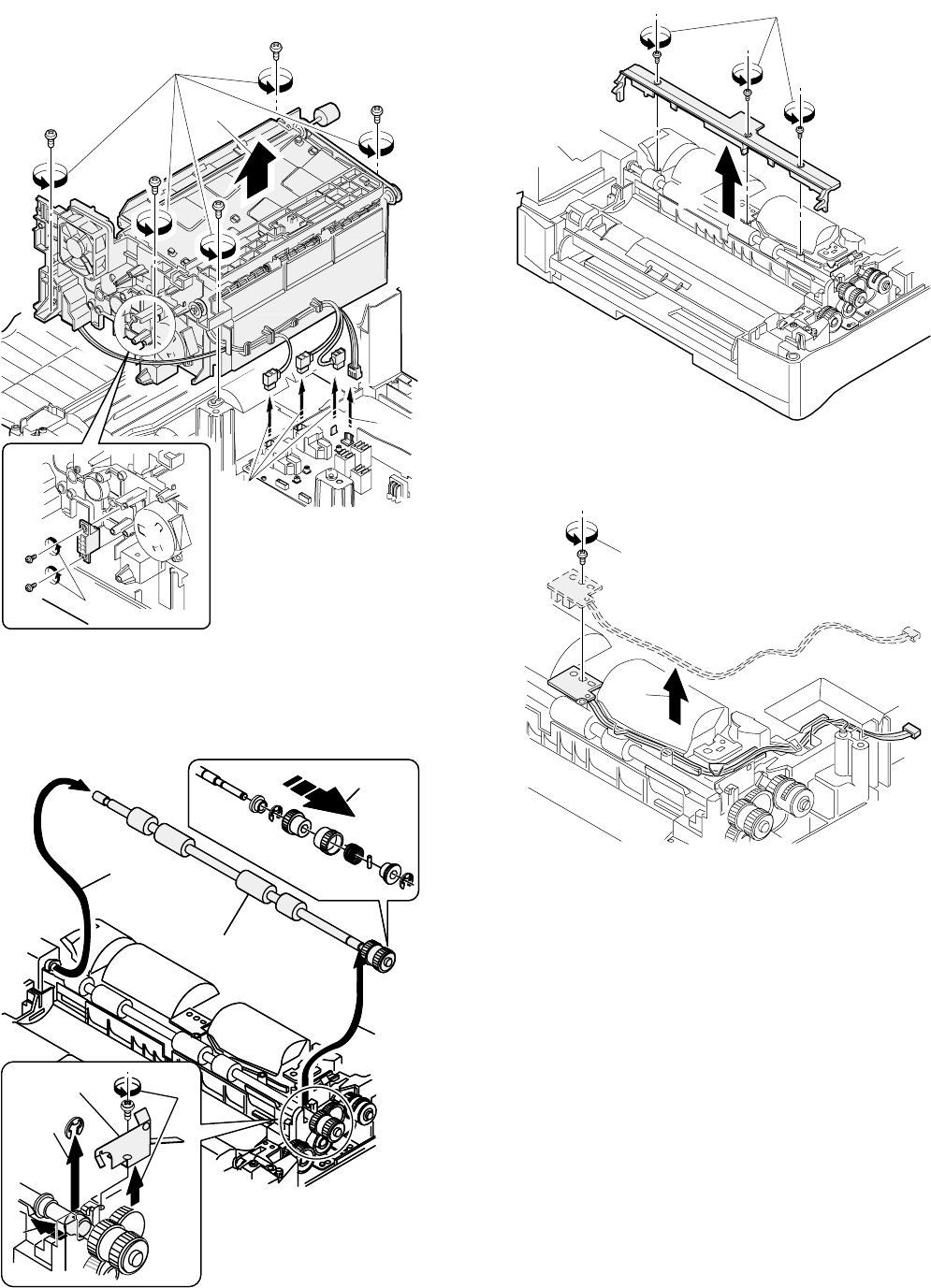

13) Remove two screws and remove the fusing connector.

14) Remove five screws and the connector, and lift the intermediate

frame unit to remove.

15) Remove the screw and the E-ring, and remove the PS semi-circular

earth plate and the PS roller unit.

16) Remove the E-ring and remove the spring clutch from the PS roller

unit.

17) Remove three screws and remove the TC front paper guide.

18) Remove the screw and the connector, and remove the PPD1 sensor

PWB.

PS roller unit

PS semi-circuler

earth plate

PS roller unit

PS semi-circuler

earth plate
