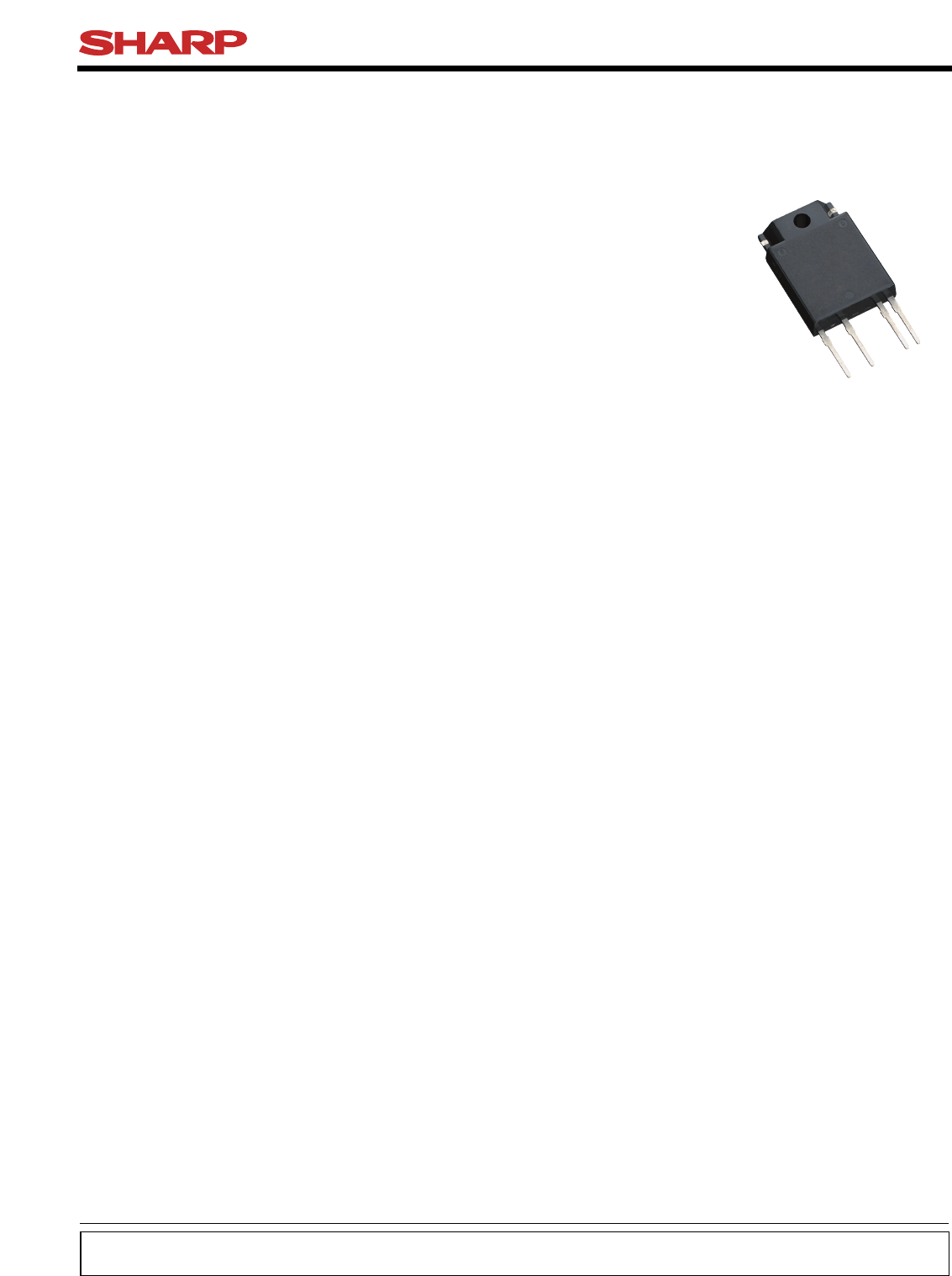

S116S02 Series

S216S02 Series

■ Features

(rms)≤16A, Zero Cross type

SIP 4pin

Triac output SSR

1. Output current, I

(rms)≤16.0A

2. Zero crossing functionary (V

: MAX. 35V)

3. 4 pin SIP package

4. High repetitive peak off-state voltage

DRM

: 600V, S216S02 Series)

DRM

: 400V, S116S02 Series)

5. High isolation voltage between input and output

iso

(rms) : 4.0kV)

6. Screw hole for heat sink

■ Description

S116S02 Series and S216S02 Series Solid State

Relays (SSR) are an integration of an infrared emitting

diode (IRED), a Phototriac Detector and a main output

Triac. These devices are ideally suited for controlling

high voltage AC loads with solid state reliability while

providing 4.0kV isolation (V

iso(rms)

) from input to

output.

Notice The content of data sheet is subject to change without prior notice.

In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP

devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.

S116S02 Series

S216S02 Series

■ Agency approvals/Compliance

1. Isolated interface between high voltage AC devices

and lower voltage DC control circuitry.

2. Switching motors, fans, heaters, solenoids, and

valves.

3. Power control in applications such as lighting and

temperature control equipment.

■ Applications

Recognized by UL508 (only for S116S02 Series), file

No. E94758 (as models No. S116S02)

2. Approved by CSA 22.2 No.14

(only for S116S02

Series)

, file No. LR63705 (as models No.

S116S02

)

3. Package resin : UL flammability grade (94V-0)

Sheet No.:D4-A02701FEN

Date Apr. 28. 2004

∗

Non-zero cross type is also available. (S116S01 Series/

S216S01 Series)
