1-7

CN2

MJ2 MJ1

CN1

100-

240VAC

RUN / STOP

POWER

RUN

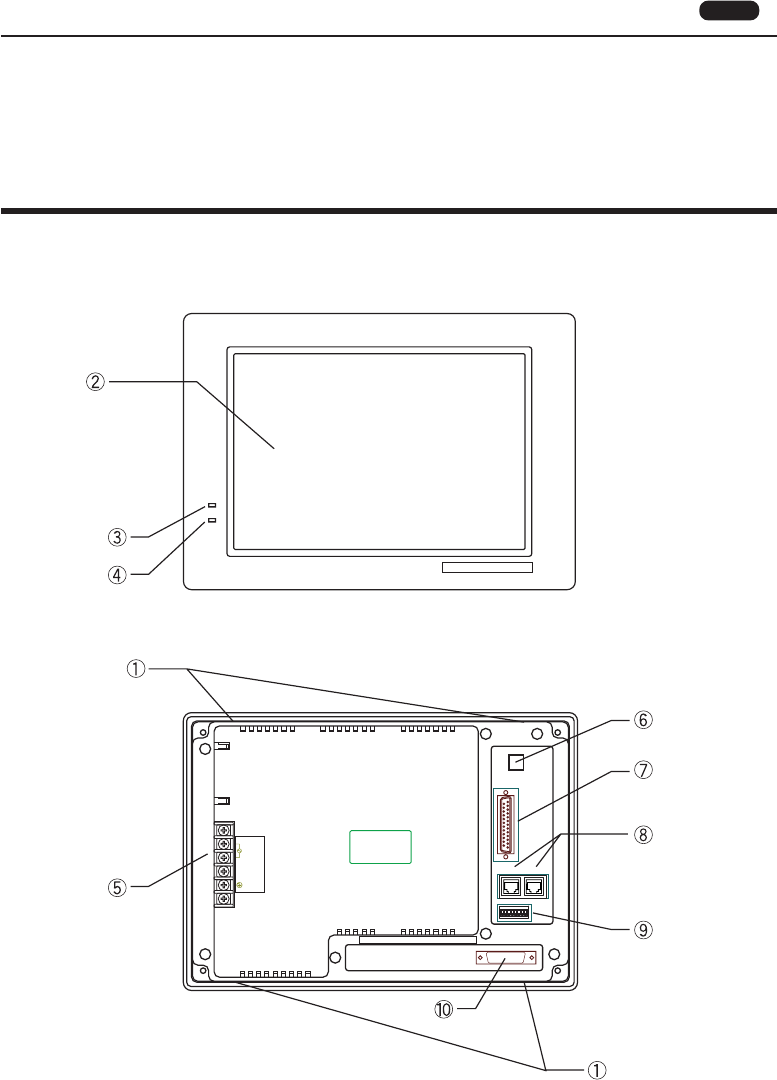

Names of Components

The names of ZM-62E’s parts and their functions are shown below.

Front Side

Rear Side

1. Mounting holes for fixtures

2. Display

3. Power lamp: The red LED lights up when power is on.

4. RUN lamp: The green LED lights up when the unit is working.

5. AC input terminal of power supply

6. RUN/STOP switch: To change the operation modes

7. Serial Connector CN1: for PLC (RS-232C, RS-422)

8. Modular Jack MJ1, 2 (Refer to page 1-28)

9. Dip switches

10. Printer connector CN2: for printer

1 Names of Components
