Maintenance

130

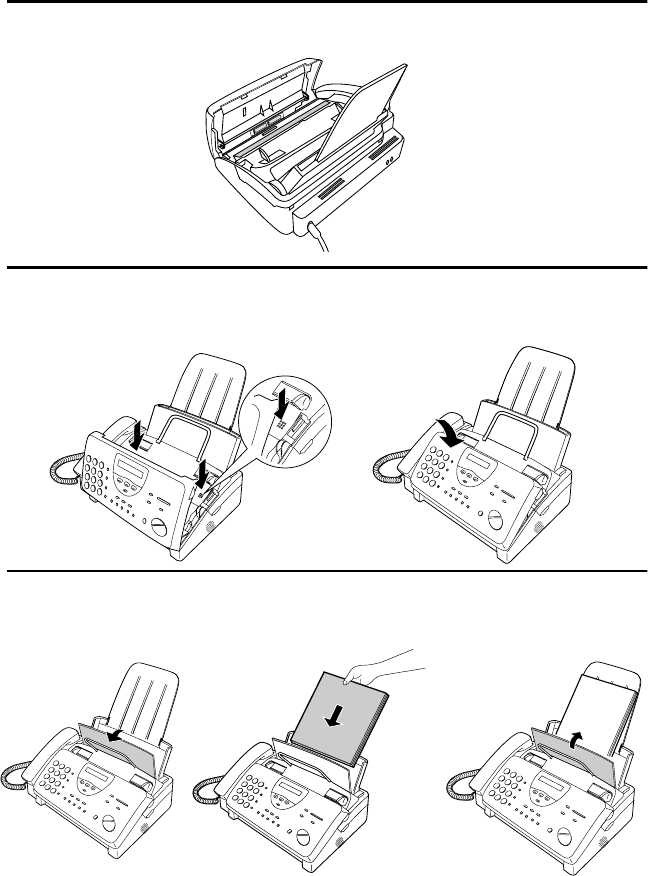

Place the imaging film cartridge back in the print compartment.

Close the print compartment cover (press down on both sides to make

sure it clicks into place), and then close the operation panel.

Pull the paper release plate toward you, reinsert the paper in the paper

tray and push the paper release plate back down.

If SET PAPER & PRESS START KEY appears in the display, make

sure the paper is inserted correctly and then press the START/

MEMORY key.
