AR-D25/D24 UNPACKING AND INSTALLATION

– 4 –

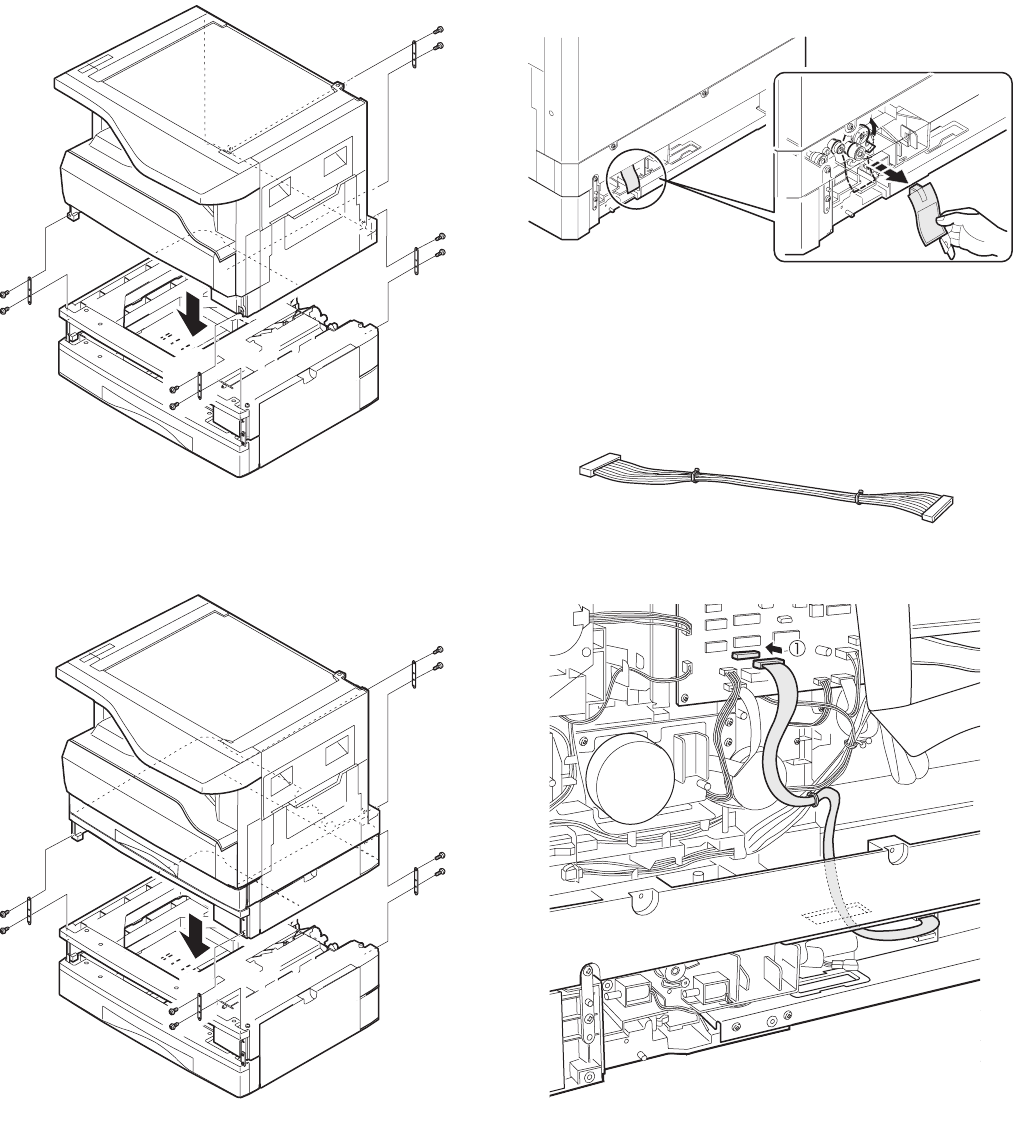

• Copier (1-tray model) + 500-sheet paper feed unit

• Copier (2-tray model) + 500-sheet paper feed unit

7) Remove the connection gear lock.

Remove the connection gear lock (with the red tug) after setting.

8) Connect the connector

Connect the optional relay harness contained in the 1-tray model (2-tray

model) paper feed unit to the PWB of the copier.

• Optional relay harness

• Copier (1-tray model) + 250-sheet paper feed unit
