AR-D25/D24 UNPACKING AND INSTALLATION

– 2 –

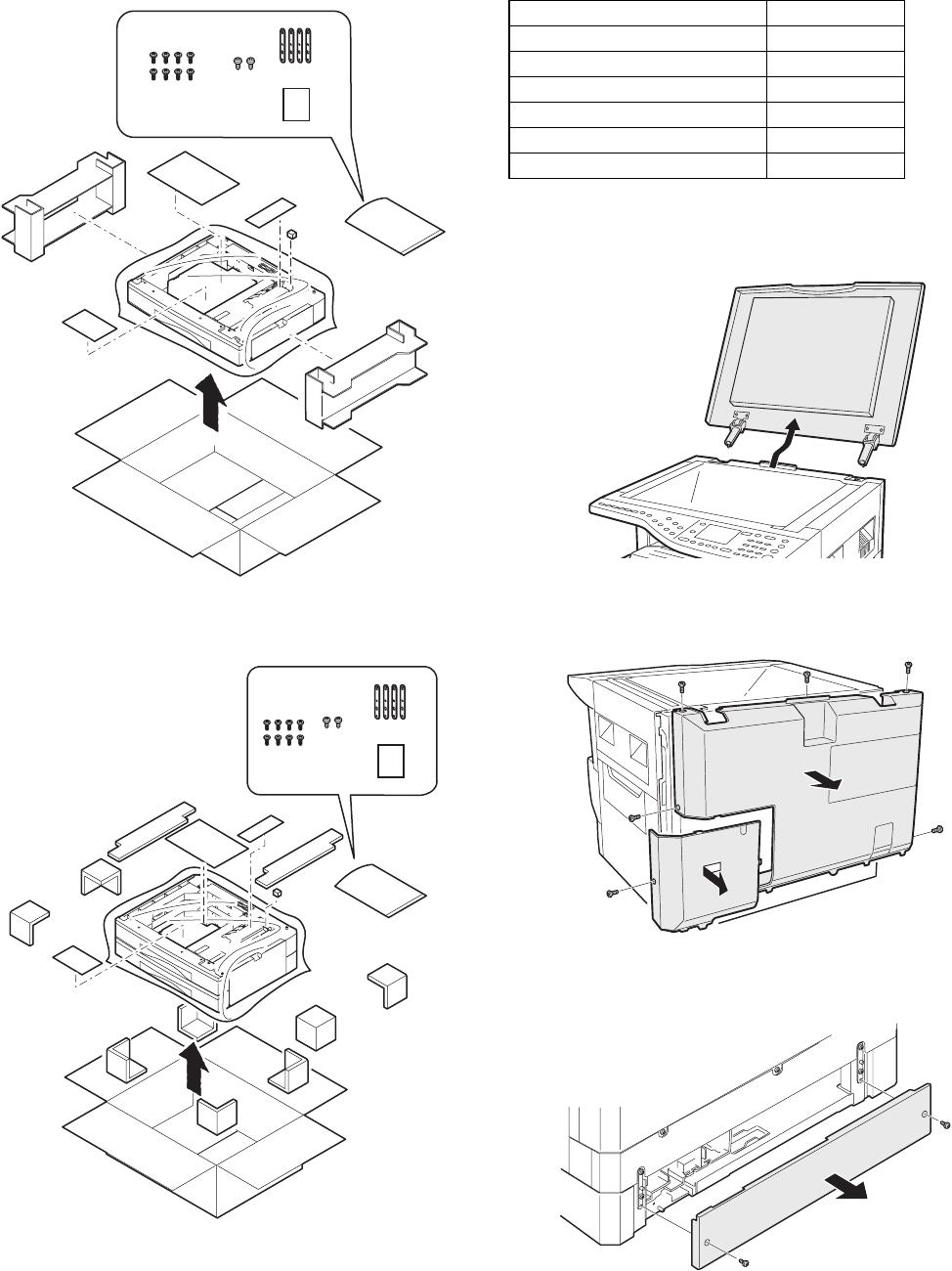

[3] UNPACKING AND INSTALLATION

1. Unpacking

(AR-D24)

(AR-D25)

2. Installation

Included parts

1) Remove the document cover.

Lift the document cover from the copier and tilt it to the rear side to

remove it.

2) Remove the rear cabinet.

Remove the screw and remove the cover. Then, remove the five screws

and remove the rear cabinet.

3) Remove the copier rear cover.

Remove the two screws and remove the rear cover.

Part name Quantity

Screw (Fixing plate) 8

Screw 2

Screw 1

Fixing plate 3

Fixing plate 1

Connection gear 1
