7.7 FUSING EXIT SENSOR REPLACEMENT
1. Turn off the main switch.
2. Open the front cover and exit unit.
3. Remove the following parts:
• Left inner cover
• Left lower and upper covers
• Rear cover
• AC drive board

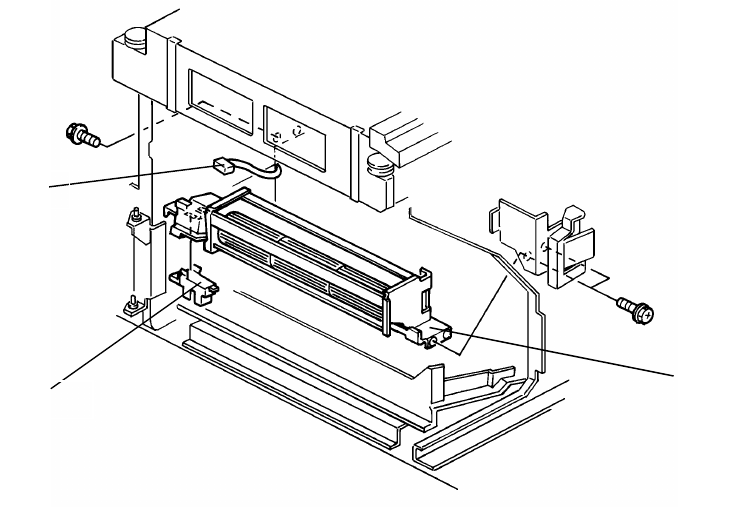

4. Disconnect the exit sensor connector [A].
5 Remove the exhaust blower motor bracket [B] (4 screws).
6. Replace the exit sensor [C].
[A]
[B]
[C]
1 December 1990
5-87
