Sharp AR-650 Manual de Serviço Página 175
- Página / 396
- Índice
- MARCADORES
Avaliado. / 5. Com base em avaliações de clientes

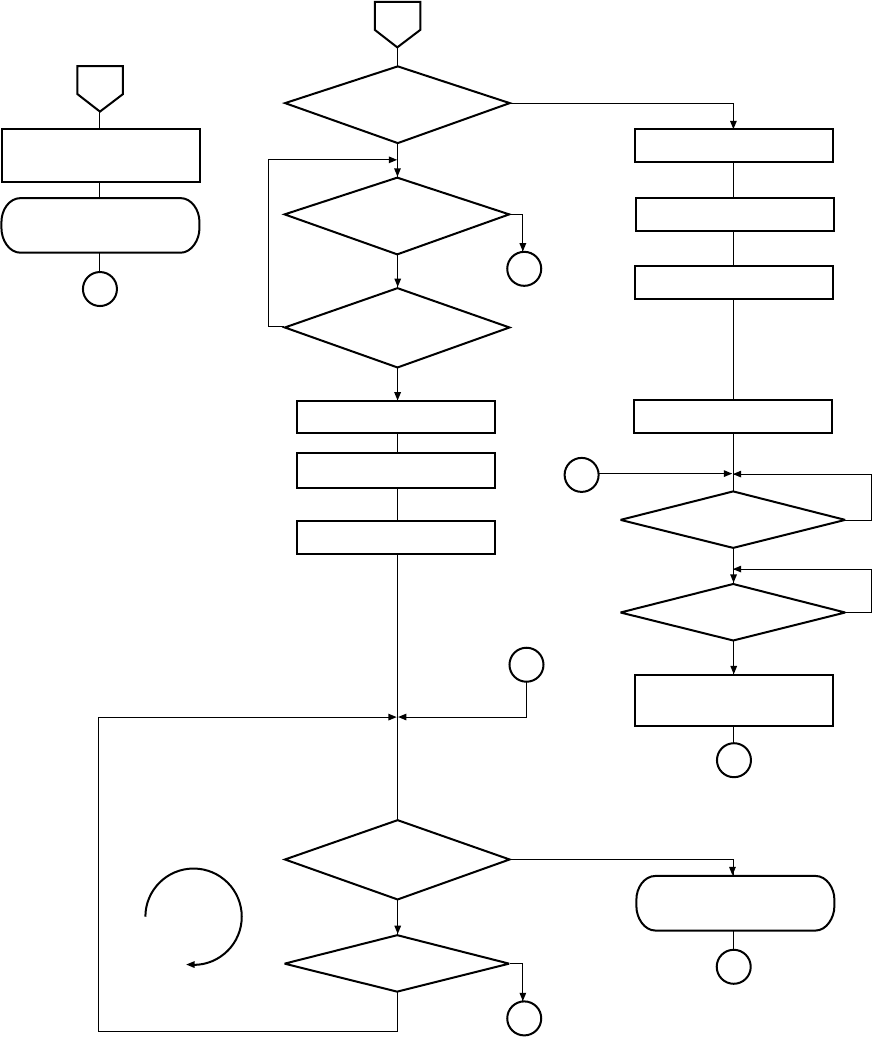

PAPER FEED SYSTEM 9 - 36
NO
NO
NO
YES
YES
YES
YES
NO
NO
NO
NO
13
C2
C1
1
YES
7
5
6
10
13
All motors and
clutches OFF
"ADD PAPER"
symbol flashes
PFP paper-empty
switch ON?
YES
YES
Is the copier's CRUN
signal "H"?
Have two
seconds passed since tray
stopped?
PFP tray motor CW ON Tray lowers
Two-second delay
PFP tray motor OFF Tray stops
In the copier's
CRUN signal "H"?
Door open?
Standby
*: Branch according to each
level's PFP paper-empty switch
(paper-empty detection).
"ADD PAPER" flashing
Only when a
cassette with no
paper is selected
PFP tray motor CW ON
Lower
tray
Two-second delay
PFP tray motor OFF
Tray
stop
Cassette switch OFF?
Cassette switch ON?
"ADD PAPER" no
longer flashing
Paper feed standby
*
