GX30

2 – 2

CONFIDENTIAL

2.3. Starting up

Connect GX30 to an operable serial port of the PC with the supplied data cable. Make sure that the battery is fully charged.

Start SPST from the desktop.

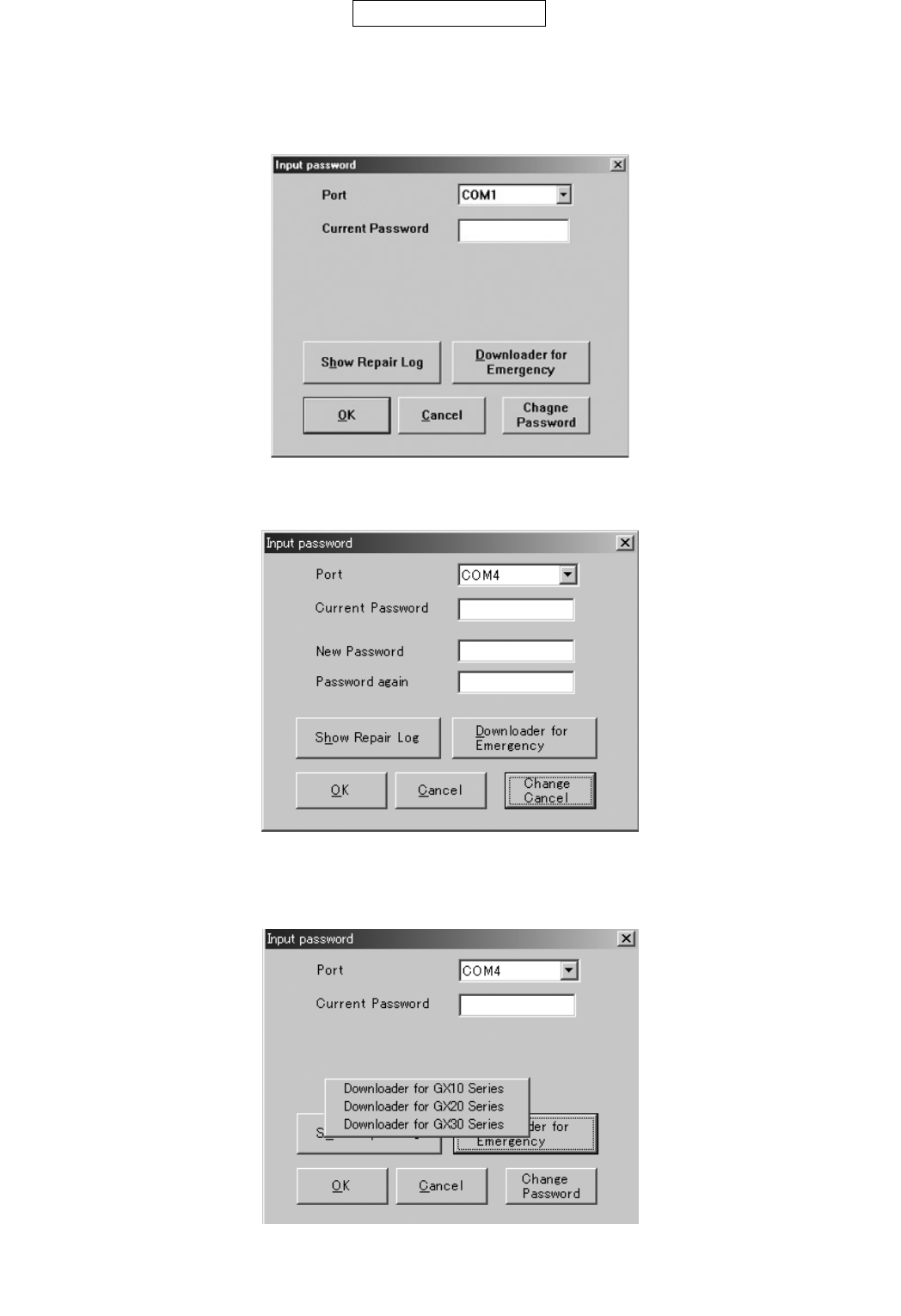

1. The Input password dialog box appears. Enter the password, select a port where GX30 is connected from the list box, and click “OK”.

If you do not know SPC, click “Cancel” to exit.

Figure 1

2. To change the password, enter the current password in figure 1, and then click “Change Password”.

Figure 2

3. To check the usage status of tools, click “Show Repair Log” in figure 1.

4. Click “Downloader for Emergency”.

Figure 3

The above screen appears. Select a model to use and execute the Downloader. (Use this to initialize the flash, etc.)
