LCD Modules LS013B4DN04

2 Application Note

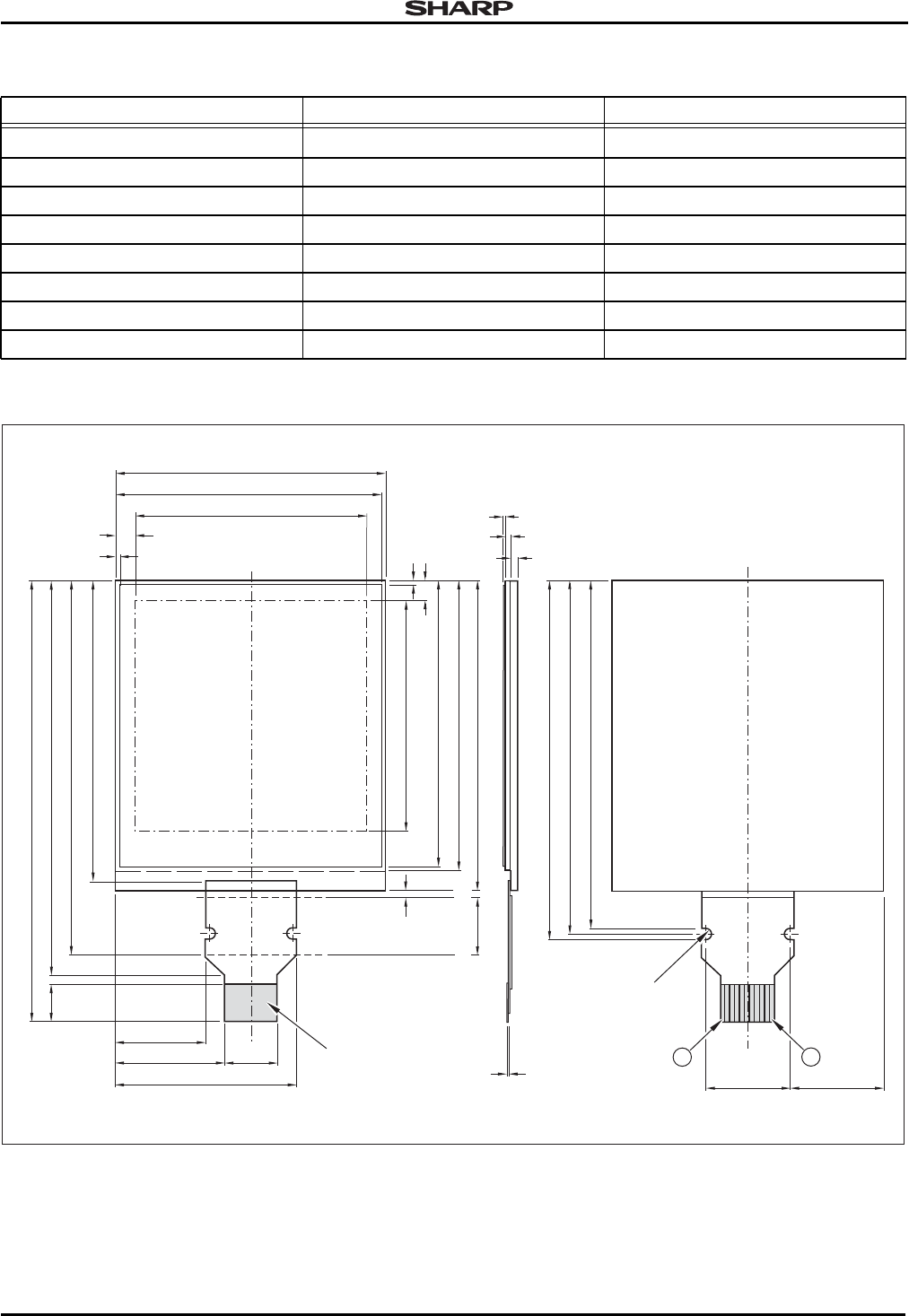

MECHANICAL SPECIFICATIONS

External Dimensions

PARAMETER SPECIFICATION UNIT

Screen Size 1.3

Inch

Viewing Area 24.192 (H) × 24.192 (V) mm

Dot Configuration (Square panel) 96 (H) × 96 (V) Dots

Dot Pitch 0.252 (H) × 0.252 (V) mm

Pixel Array Stripe Array -

External Dimensions 28.2 (W) × 32.34 (H) × 1.4 (D) mm

Mass 3.6 (TYP.) g

Surface Hardness 3H Pencil hardness

DISPLAY SIDE

BACK SIDE

28.2 ±0.2

0.30 ±0.3

8.64 ±0.1

9.78

2-R0.6

32.34 ±0.2

6.06

(Bending Area)

0.8

27.6 ±0.15

(Note 1)

24.192

2.004

0.1

(Note 1)

0.6

0.7

0.3

46.12

0.4

2.0

24.192

37.4

36.8

36.2

29.64 ±0.15

(Note 1)

30.24

4.0

9.365

11.35

18.835

P1 Stiffener

5.5

41.185

39.2

31.4

NOTES:

1. UV Protection Film

2. Units: mm

LS013B4DN04-16
