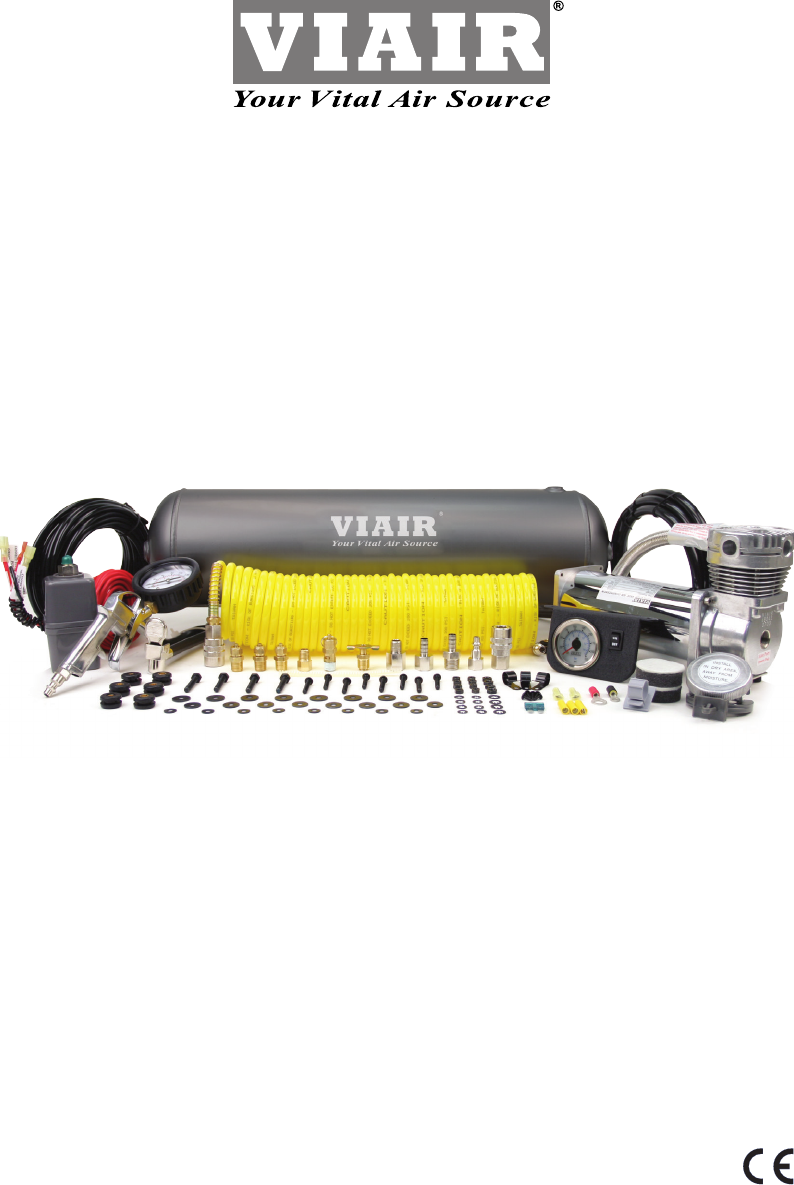

ULTRA DUTYONBOARD AIR SYSTEMPART NO. 20001IMPORTANT:It is essential that you and any other operator of this product read and understand the contents o

COMPRESSOR APPLICATION GUIDETo ensure that you get the highest level of satisfaction from your compressor performance, refer to information below: VIA

USER MANUALLIMITED WARRANTY:VIAIR Corporation warrants this product, when properly installed and under normal conditions of use, to be free from defec

Package #3 – Pressure Switch & Reducer: AA. Pressure Switch with Relay (165 PSI on, 200 PSI off) (1pc)BB. Reducer (1/8” NPT F to 1/4” NPT M) (1

USER MANUALULTRA DUTY ONBOARD AIR SYSTEM2.5 GALLON 200 PSI AIR TANK & PLUMBING (USE CONTENTS OF PARTS PACKAGE #1)Your 2.5 Gallon air tank comes w

USER MANUALULTRA DUTY ONBOARD AIR SYSTEM2.5 GALLON 200 PSI AIR TANK & PLUMBING (CONT’D)WARNING: FAILURE TO DRAIN TANK AND REMOVE CONDENSATIONWILL

480C AIR COMPRESSOR INSTALLATION (USE CONTENTS OF PARTS PACKAGE #2)Your 200 PSI Onboard Air System comes complete with a 480C, 200 PSI maximum working

480C OPERATING INSTRUCTIONSIMPORTANT: The 480C has a maximum working pressure of 200 PSI and is capable of 50% duty cycle at 200 PSI. Always operate t

USER MANUALULTRA DUTY ONBOARD AIR SYSTEMDASH PANEL GAUGE INSTALLATION (USE CONTENTS OF PARTS PACKAGE #4)Your VIAIR Constant Duty Onboard Air System co

USER MANUALULTRA DUTY ONBOARD AIR SYSTEMDASH PANEL GAUGE INSTALLATION (CONT’D)7. Connect to Power Source:Before connecting the power wire to a power s

USER MANUALULTRA DUTY ONBOARD AIR SYSTEMTROUBLESHOOTING GUIDE:Tank pressure drops when compressor (s) shut off1. Loose drain cock2. Check valve leakin
