R-930AK

R-930AW

SCHEMATIC

1. DOOR CLOSED.

2. CONVECTION PAD TOUCHED.

3. DESIRED TEMP. TOUCHED.

4. COOKING TIME PROGRAMMED.

5. “START” PAD TOUCHED.

SCHEMATIC

1. DOOR CLOSED.

2. MIX COOKING PAD TOUCHED.

3. COOKING TIME PROGRAMMED.

4. “START” PAD TOUCHED.

5. RY2 AND RY3 WILL ALTERNATELY CLOSE.

DURING COOK CYCLE.

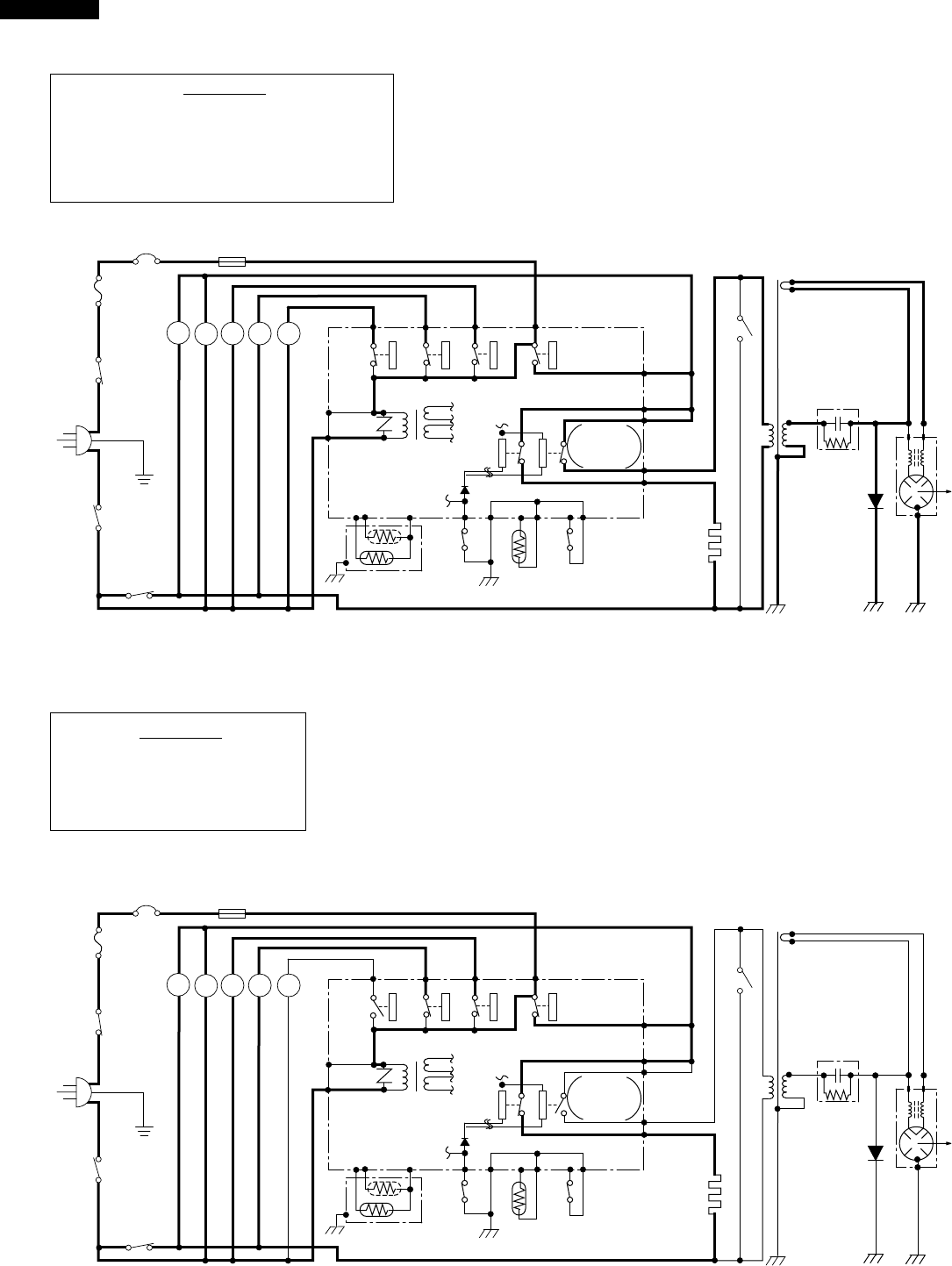

Figure O-4. Oven Schematic-Convection Cooking Condition

Figure O-3. Oven Schematic-Automatic Mix Cooking Condition

CONV.

THERMAL

CUT-OUT

MONITOR SWITCH

OVEN LAMP

FAN MOTOR

A-5

A-3

A-1

E-6

CONTROL UNIT

DAMPER

SWITCH

THER-

MISTOR

DOOR

SENSING

SWITCH

AH SENSOR

DAMPER MOTOR

CONVECTION MOTOR

TURNTABLE MOTOR

HEATIMG ELEMENT

MAGNETRON

POWER 

TRANSFORMER

H.V. RECTIFIER

CAPACITOR

0.94µ

RY4

RY5

RY6

RY1

SECONDARY

INTERLOCK

SWITCH

OUTER

CASE

SWITCH

OUTER

CASE

SWITCH

120V

60Hz

TTM

COM.

(RY1)

E-5E-4E-3E-2E-1F-3F-2F-1

RY3

RY2

PRIMARY 

INTERLOCK

RERAY

N.O.

(RY1)

COM.

(RY3)

COM.

(RY2)

N.O.

(RY2)

N.O.

(RY3)

A-9

A-7

MAGNETRON 

TEMPERATURE

FUSE

RY2

CONV.

THERMAL

CUT-OUT

MONITOR SWITCH

OVEN LAMP

FAN MOTOR

A-5

A-3

A-1

E-6

CONTROL UNIT

DAMPER

SWITCH

THER-

MISTOR

DOOR

SENSING

SWITCH

AH SENSOR

DAMPER MOTOR

CONVECTION MOTOR

TURNTABLE MOTOR

HEATIMG ELEMENT

MAGNETRON

POWER 

TRANSFORMER

H.V. RECTIFIER

CAPACITOR

0.94µ

RY4

RY5

RY6

RY1

SECONDARY

INTERLOCK

SWITCH

OUTER

CASE

SWITCH

OUTER

CASE

SWITCH

120V

60Hz

TTM

COM.

(RY1)

E-5E-4E-3E-2E-1F-3F-2F-1

RY3

RY2

PRIMARY 

INTERLOCK

RERAY

N.O.

(RY1)

COM.

(RY3)

COM.

(RY2)

N.O.

(RY2)

N.O.

(RY3)

A-9

A-7

MAGNETRON 

TEMPERATURE

FUSE

RY2

1 2 ... 7 8 9 10 11 12 13 14 15 16 17 ... 43 44
