Dimension: 140 X 215 mm

(Rear connection

terminals of TV)

DVD

CAMCORDER

TV GAME

VCR

(Front connection

terminals of TV)

Inside the front door

To VIDEO

OUTPUT

To AUDIO OUTPUT (L)

To AUDIO OUTPUT (R)

To VIDEO OUTPUT

To AUDIO OUTPUT (R)

To AUDIO OUTPUT (L)

To VIDEO OUTPUT

To AUDIO OUTPUT (L)

To AUDIO OUTPUT (R)

Yellow : To video input terminal

White : To audio input (L) terminal

Red : To audio input (R) terminal

Using the Video and Audio Input Terminals

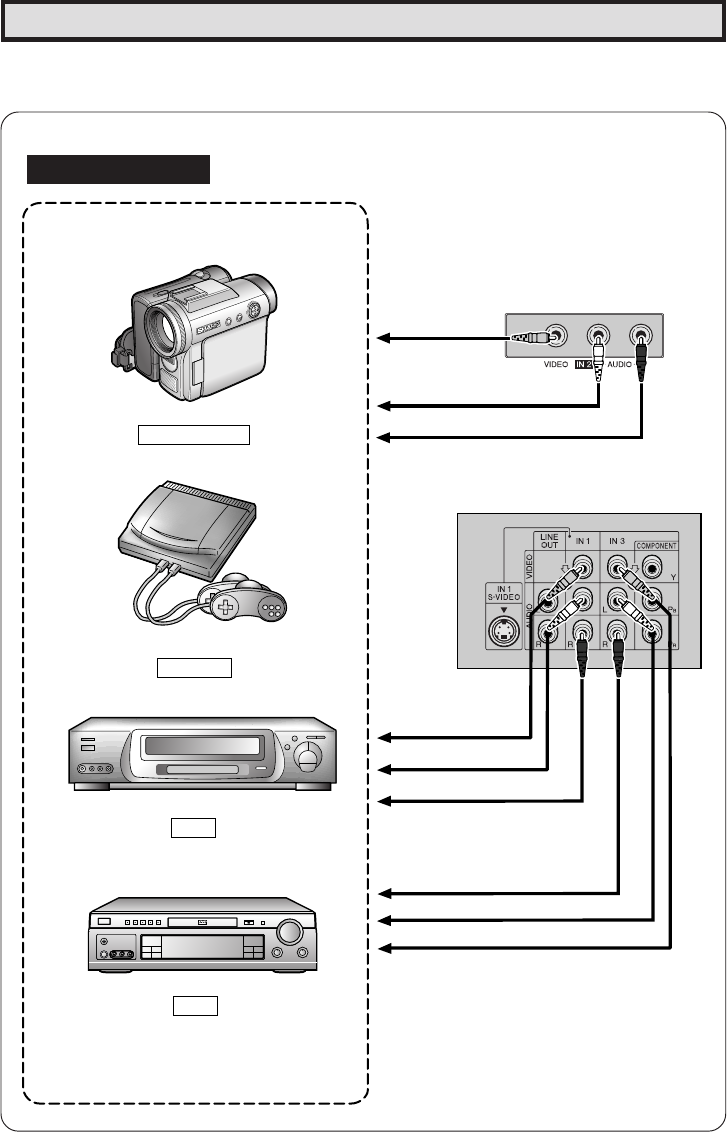

VIDEO EQUIPMENT

•

Connecting video equipment for playback of video material.

• To view video material from external video equipment, make sure to connect the equipment properly

to the input terminals on the TV set.

Connecting video device equipped with video output terminals

CONNECTIONS

27/32F640(39-41) 03.10.8, 9:32 AM39
