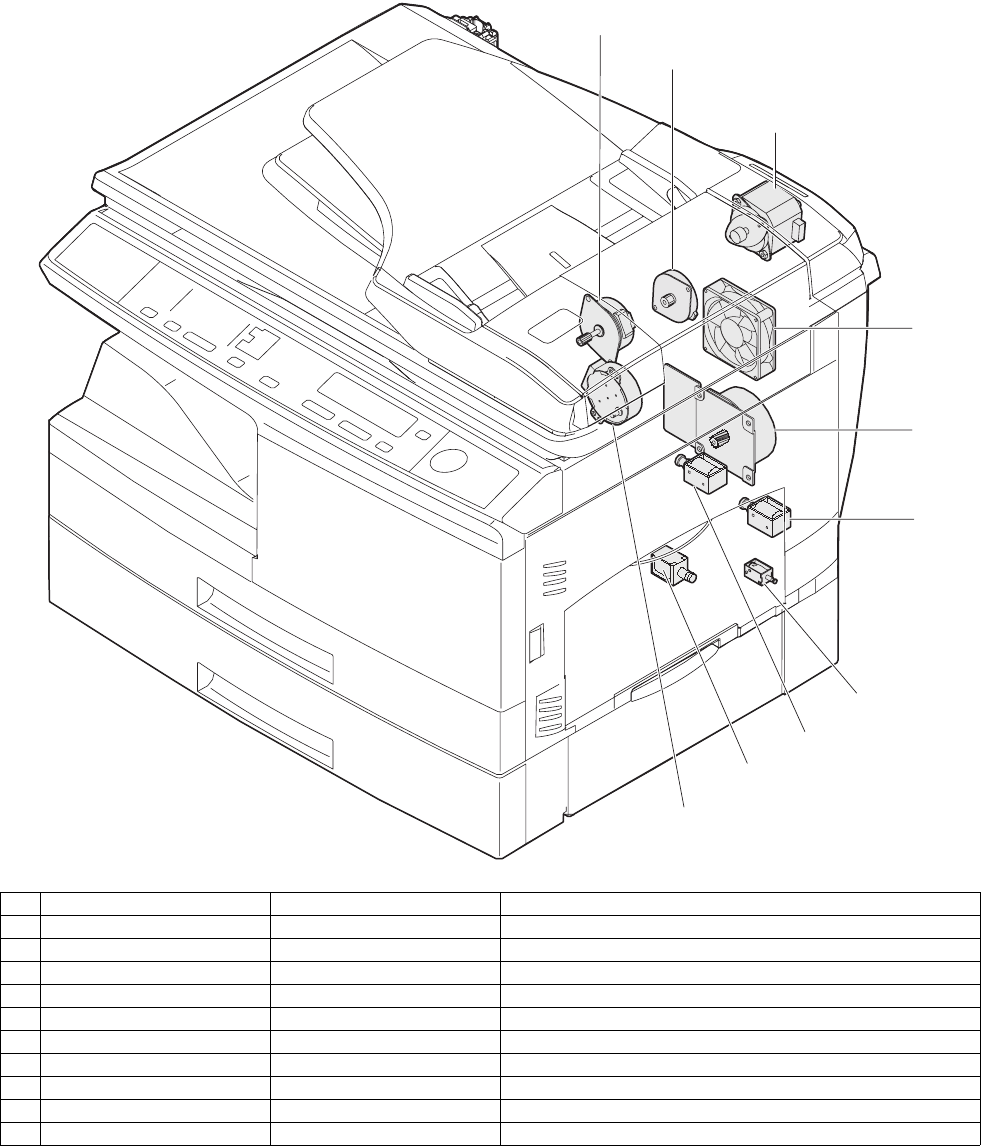

AL-2040CS EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 4

4. Motors and solenoids

No. Part name Control signal Function / Operation

1 Main motor MM Drives the copier.

2 Scanner motor MRMT Drives the optical mirror base (scanner unit).

3 Toner motor TM Supplies toner.

4 Cooling fan motor VFM Cools the optical, fusing section.

5 Resist roller solenoid RRS Resist roller rotation control solenoid

6 Paper feed solenoid CPFS1 Cassette Paper feed solenoid 1

7 Multi paper feed solenoid MPFS Multi manual pages feed solenoid

8 SPF motor SPFM Drives the single pass feeder

9 Duplex motor DMT Devices the duplex paper transport section

10 Paper feed solenoid CPFS2 Cassette Paper feed solenoid 2
