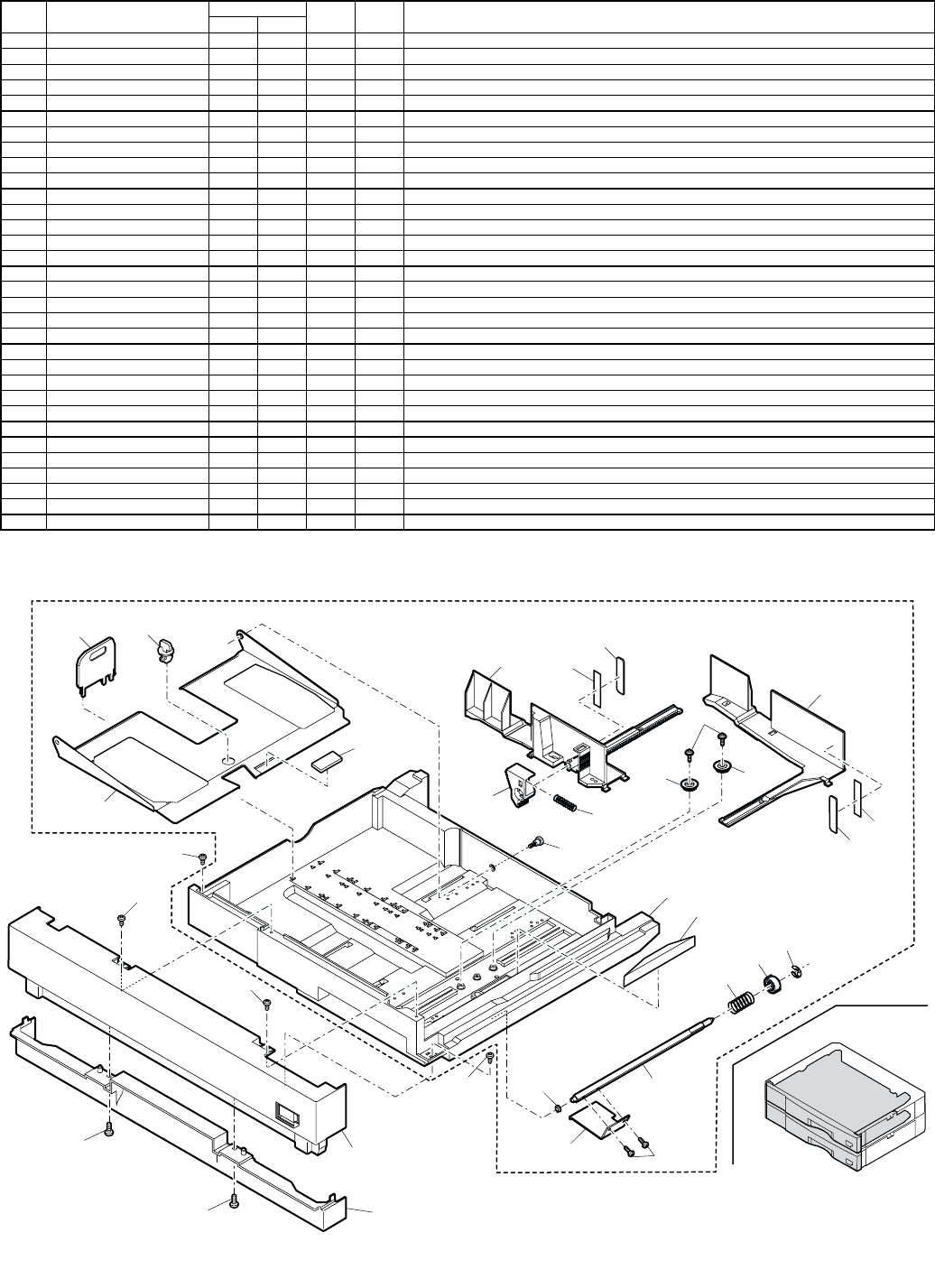

– 7 –

6

550 枚ｶｾｯﾄ (550 sheets cassette unit)

6

550 枚ｶｾｯﾄ (550 sheets cassette unit)

NO. PARTS CODE

PRICE RANK

NEW

MARK

PART

RANK

DESCRIPTION

Ex. Ja.

1 LPLTP0159QSZZ AD DJ C

Cassette rear side plate ｶｾｯﾄ後端板

2 LHLDW1226FCZZ AB DJ C

Turn fastener ﾀｰﾝﾌｧｽﾅｰ

3 LPLTM0179QSZ1 AR EQ C

Rotation plate 回転板

4 PSHEZ0274QSZZ AC DJ C

Rotation plate sheet 回転板ｼｰﾄ

5 GCASP0005QSZ2 BA FX N D

550 sheets cassette 550 枚ｶｾｯﾄ

6 PGIDM0070QSZ1 AM EG C

Guide F ｶﾞｲﾄﾞ F

7 PTPE-0021QSZZ AD DJ C

GID tape GID 両面ﾃｰﾌﾟ

8 LPLTM0181QSZ1 AB DJ C

Side plate guide 側板ｶﾞｲﾄﾞ

9 PGIDM0071QSZZ AL EB C

Guide R ｶﾞｲﾄﾞ R

10 LX-BZ0884FCZZ AB DD C

Screw ﾋﾞｽ

11 NGERH0193FCZZ AB DD C

UC manual feed gear UC 手差しｷﾞﾔ

12 MSPRC2631FCZZ AC DJ C

Fusing pressure spring 定着加圧ｽﾌﾟﾘﾝｸﾞ

13 MLEVP0755FCZ1 AE DJ C

Side plate F lever 側板 F ﾚﾊﾞｰ

14 LX-BZ0833FCZZ AC DD C

Screw ﾋﾞｽ

15 CSHEZ0244QS02 AE DJ C

Cassette mylar ｶｾｯﾄﾏｲﾗｰ

16 XRESP70-08000 AA DD C

E type ring E- ﾘﾝｸﾞ

17 NGERH0108QSZZ AD DJ C

Lift gear(22T) ﾘﾌﾄｷﾞﾔ

18 MSPRC0210QSZZ AC DJ C

Lift gear spring ﾘﾌﾄｷﾞﾔｽﾌﾟﾘﾝｸﾞ

19 NSFTZ0047QSZZ AP EQ C

Lift shaft ﾘﾌﾄｼｬﾌﾄ

20 LPLTM0180QSZ1 AE DS C

Lift plate ﾘﾌﾄﾌﾟﾚｰﾄ

21 NBRGP0041GCZZ AD DJ C

Bearing 軸受

22 XEBSE40P10000 AA DD C

Screw(4×10) ﾋﾞｽ

23 JHNDP0005QSZZ AY FQ N D

Cassette panel ｶｾｯﾄﾊﾟﾈﾙ

24 XBPSD40P08KS0 AA DD C

Screw(4×8KS) ﾋﾞｽ

26 PCOVP0096QSZZ AN EQ N D

Cassette panel line ｶｾｯﾄﾊﾟﾈﾙﾗｲﾝ

27 LPLTM0277QSZZ AC DJ C

Side plate guide R 側板ｶﾞｲﾄﾞ R

(Unit)

901 CCASP0005RS55 BM HR N E

550 sheets cassette unit 550 枚ｶｾｯﾄﾕﾆｯﾄ

501

FCP06681

7

8

1

2

3

4

6

27

7

10

11

11

9

5

13

12

14

16

17

18

15

19

24

20

21

22

22

22

22

23

22

22

26
