C. Transfer section

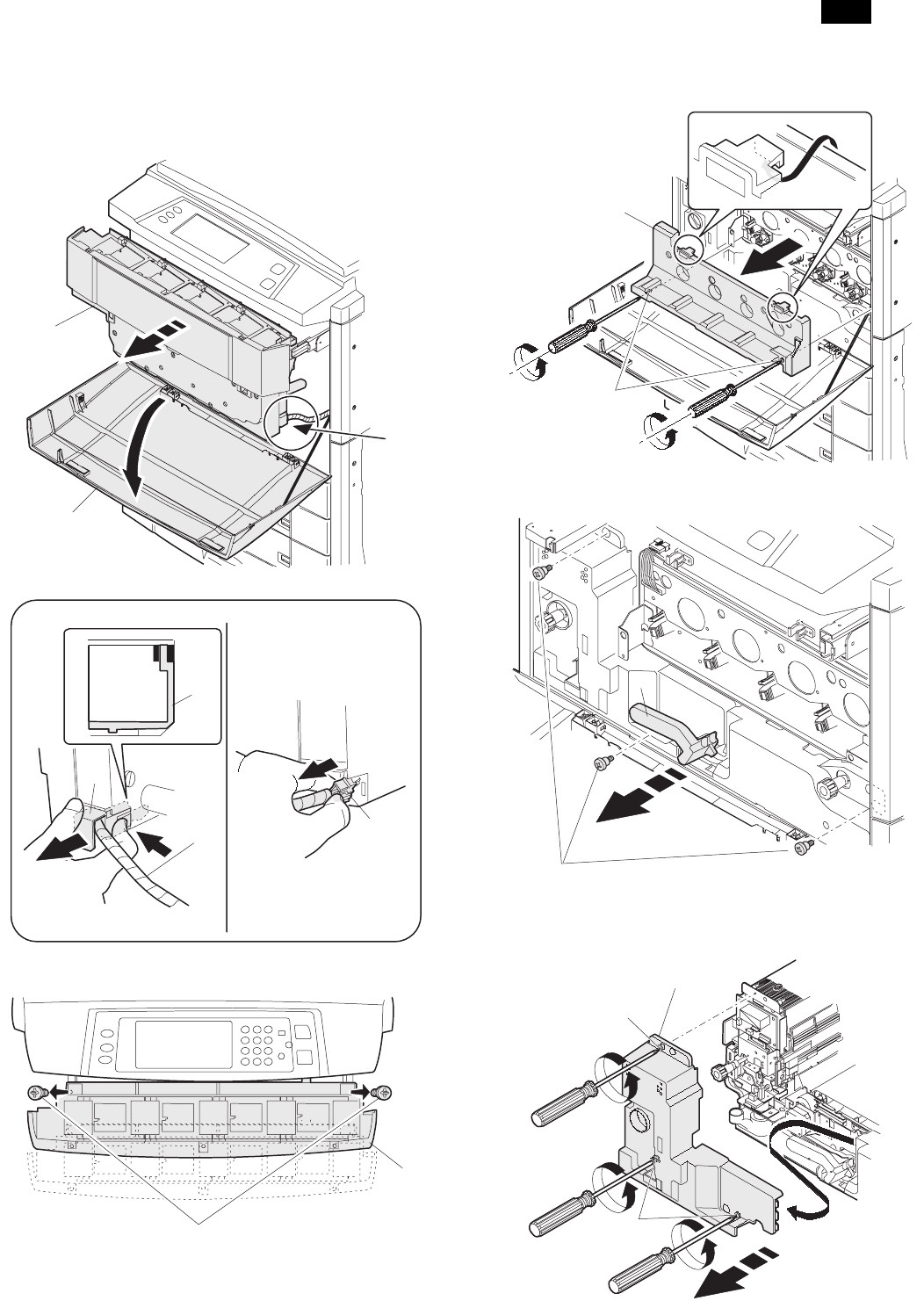

1) Open the front cover (1), and remove the toner hopper unit (2).

2) Remove the toner hopper connector cover (3) in section A and

remove the connector (4).

3) Remove the blue screw (1), and remove the toner hopper unit (2).

4) Loosen the blue screw (1), and remove the process frame cover

(2).

5) Remove the unit fixing screw (1), and hold the lever (2) to remove.

6) Loosen the blue screw (1), and remove the fusing front cover (2)

in the arrow direction.

AR-C150

4 – 6
