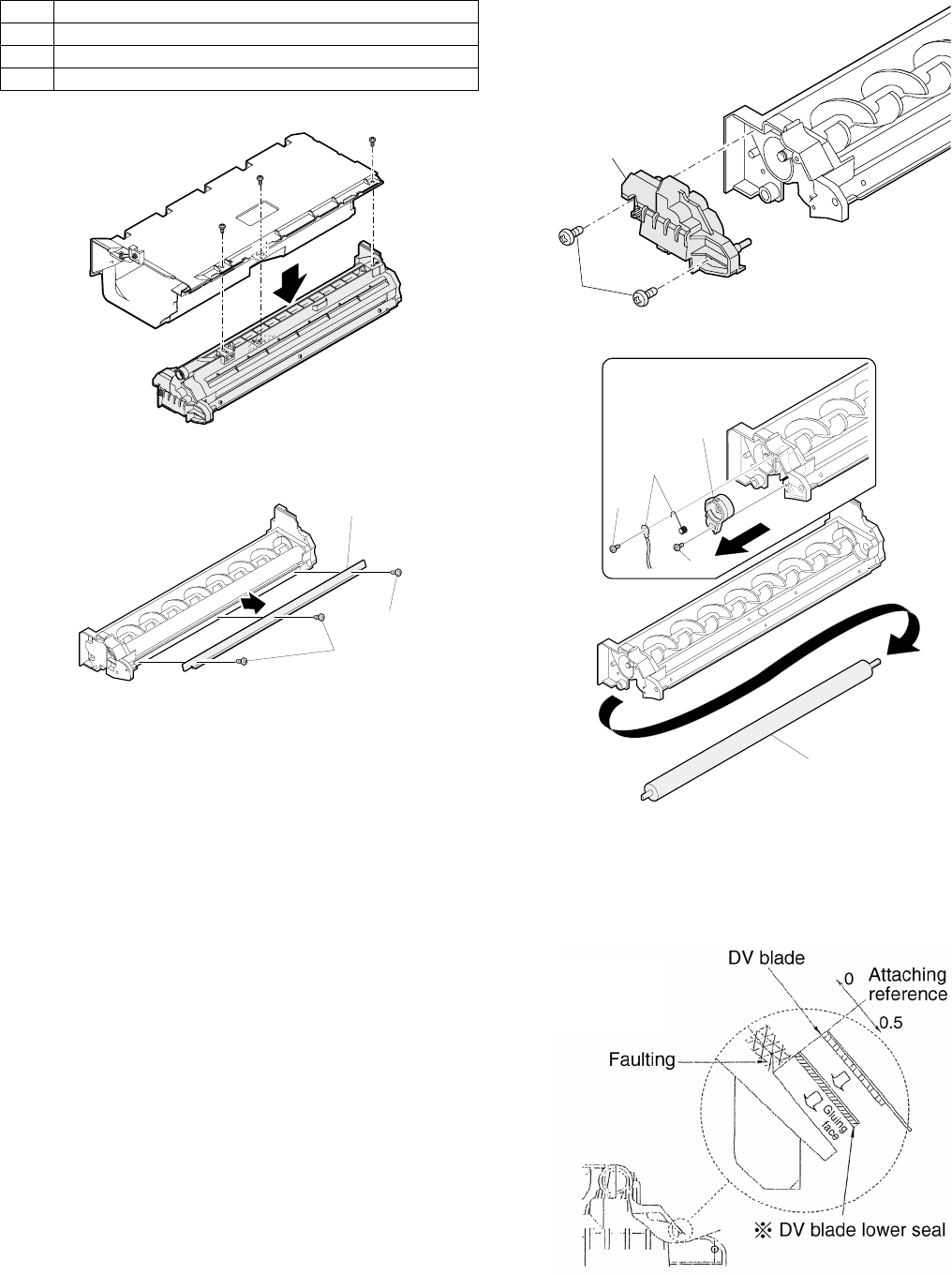

AR-5316 DISASSEMBLY AND ASSEMBLY 11-14

11.Developing section

A.Developing box

B.Developing doctor

Adjustment: Developing doctor gap adjustment

C.MG roller

Adjustment: MG roller main pole position adjustment

Note:Attach it to fit with the attachment reference when replacing the DV

blade.

No. Contents

A Developing box

B Developing doctor

C MG roller

  

 

  

(1)

(2)

 ! 

 " 

 # 

 $ 

 ! 
