GENERAL INFORMATION

PART NAMES AND FUNCTIONS

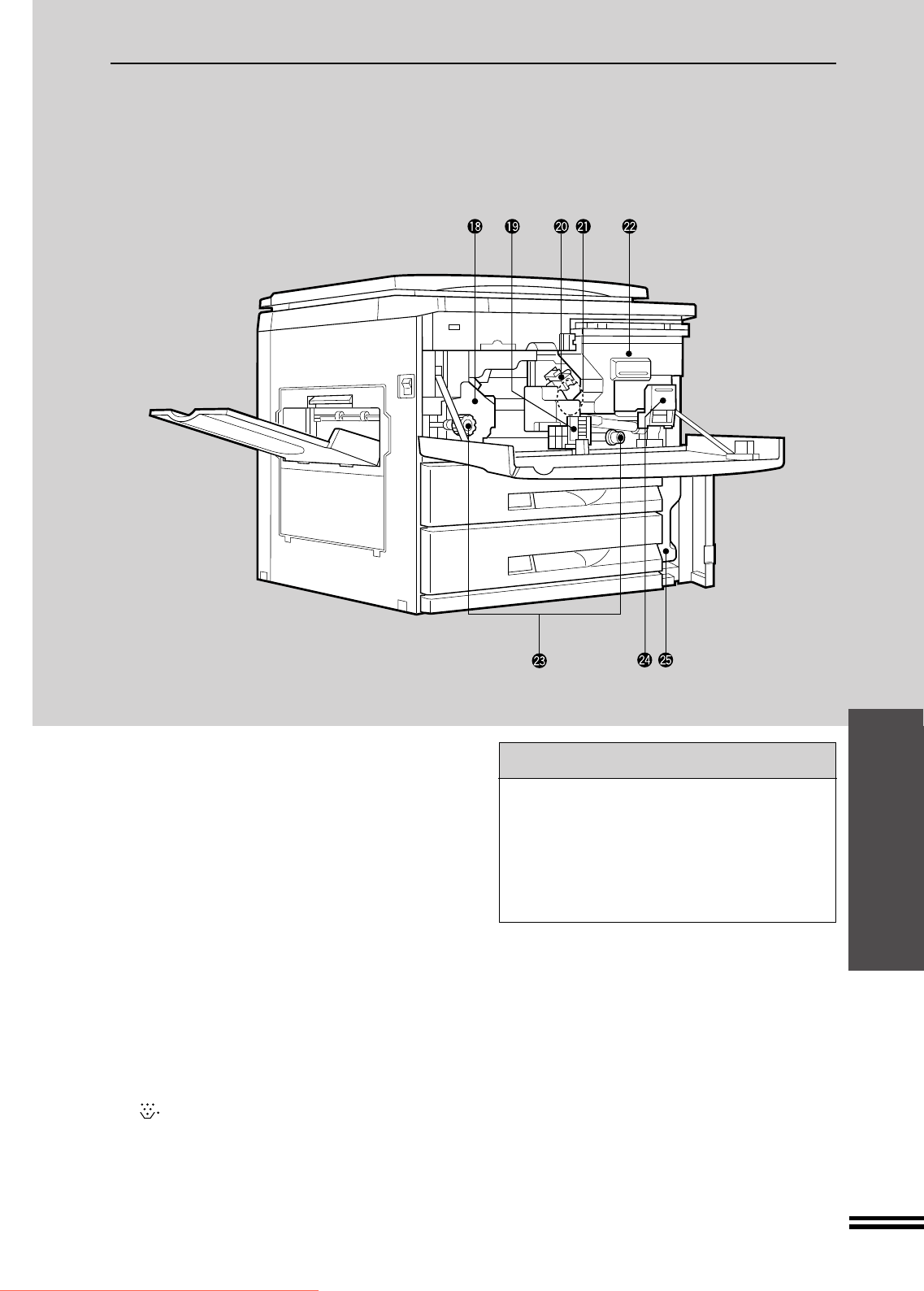

Interior

!8 Fusing unit

The fusing unit is hot. Exercise care in this area.

!9 Transport lever

Turn to open the transport section.

@0 Corona unit

The unit is used to charge the photoconductive

drum.

@1 Photoconductive drum

Copy images are formed on the photoconductive

drum.

@2 Toner hopper

Contains toner.

@3 Roller rotating knobs

Turn to remove misfed paper.

@4 Toner hopper lock lever

Pull down to release the toner hopper.

@5 Toner collecting container

Used toner is collected here. Replace when the

indicator blinks.

Accessories

Inner cassette

(installed in the lower paper tray)...................1

Exit tray ..........................................................1

Operation manual ..........................................1

Document tray................................................1

Toner collecting containers

(including 1 pre-installed at the factory) .........4

Part names and functions

GENERAL INFORMATION
