Preparation for Use

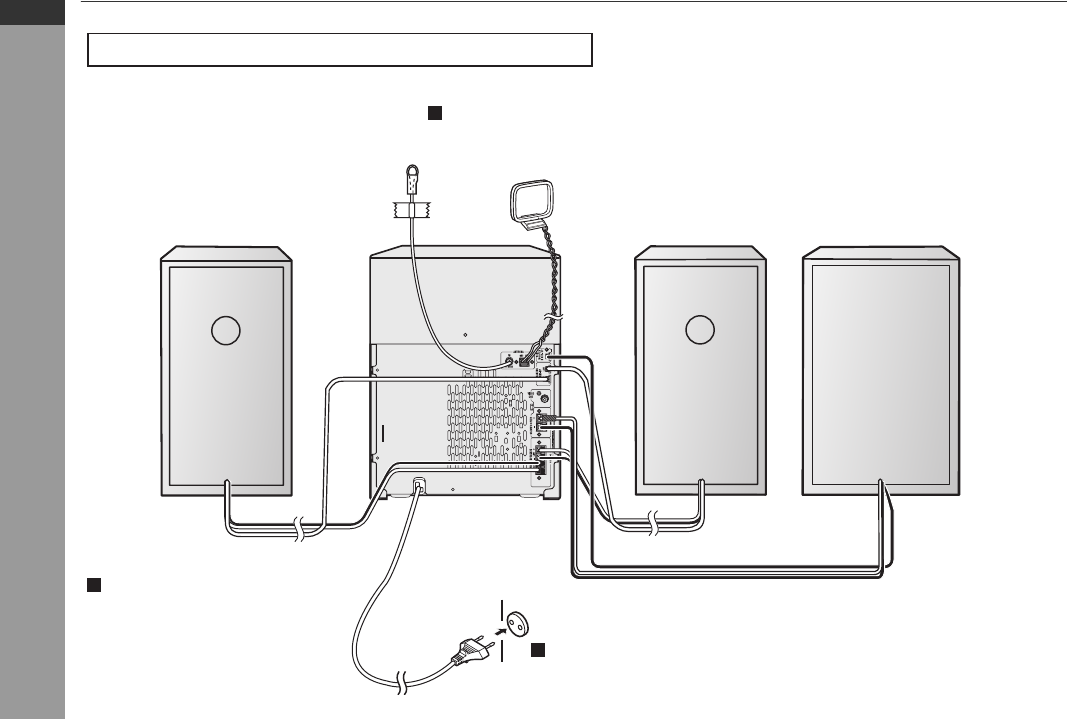

System connections

AC INPUT

Left speaker Subwoofer

Right speaker

Speaker connection

(see page 8)

Aerial connection (see page 8)

Make sure to unplug the AC power lead before any connections.

FM aerial

AM loop aerial

Subwoofer

Light-up wire

AC power connection (see page 9)

Wall socket

(AC 230 V, 50 Hz)

Speaker light-up wire Speaker light-up wire
