HT-CN650DVW

System Connections

- Speaker connection -

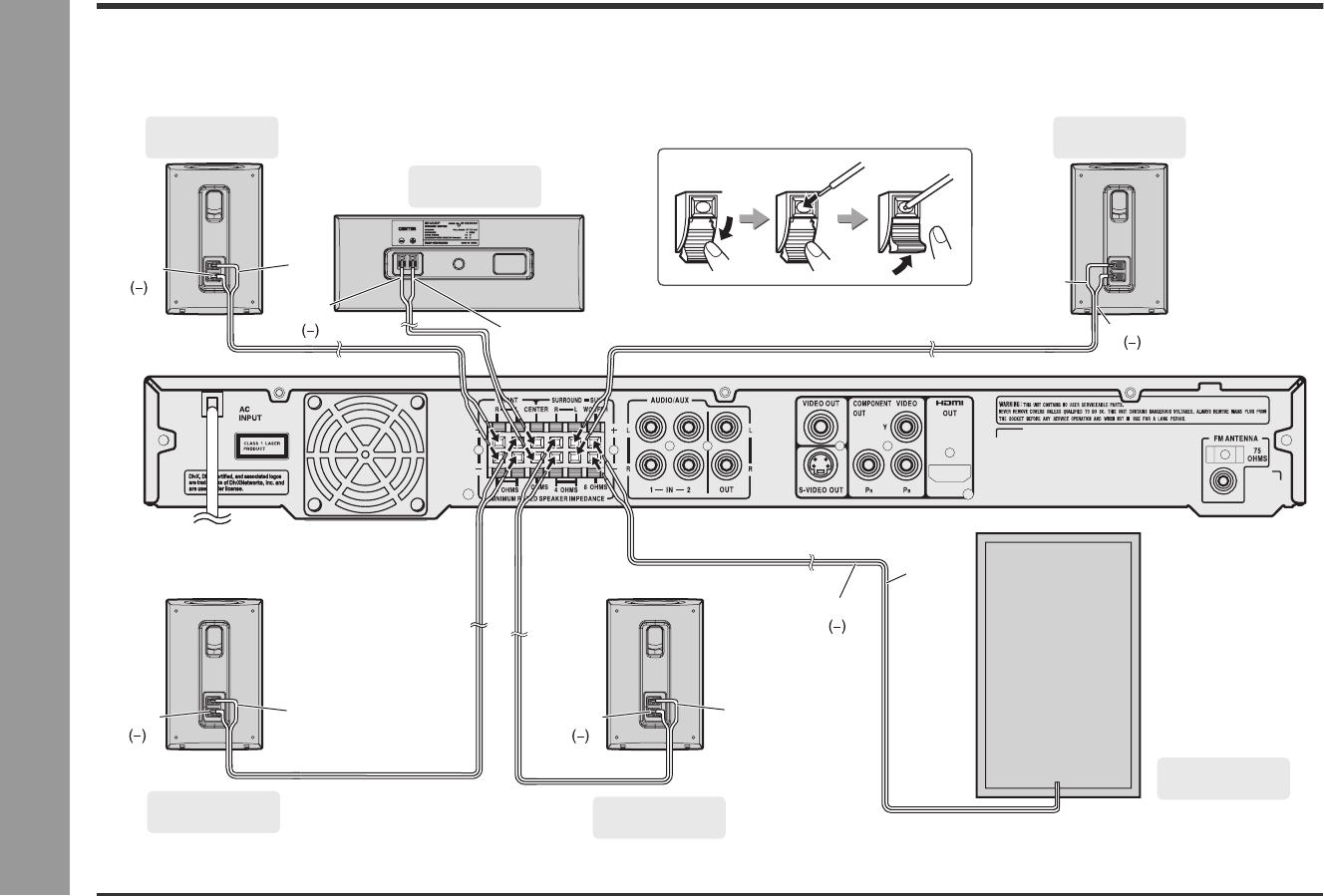

Speaker connection

Speaker terminals on the main unit and speakers, and speaker wires are distinguished by colours.

Connect the speaker and the unit by matching the colours.

(For speaker installation, see page 18.)

92LXXXXXXXXXXX

Purple

(+)

Green

(+)

Red

(+)

Front speaker

(right)

Centre speaker

Surround speaker

(left)

Subwoofer

Surround speaker

(right)

Front speaker

(left)

Grey

(+)

Blue

(+)

White

(+)

Black
