CD-MPS700

3 – 6

3.2. How to Remove the tray motor/main cam motor/5-

Changer Motor PWB (See Fig. 6)

1. Remove the screws (A1)x 2 pcs., to remove tray motor/main cam

motor/5-Changer Motor PWB.

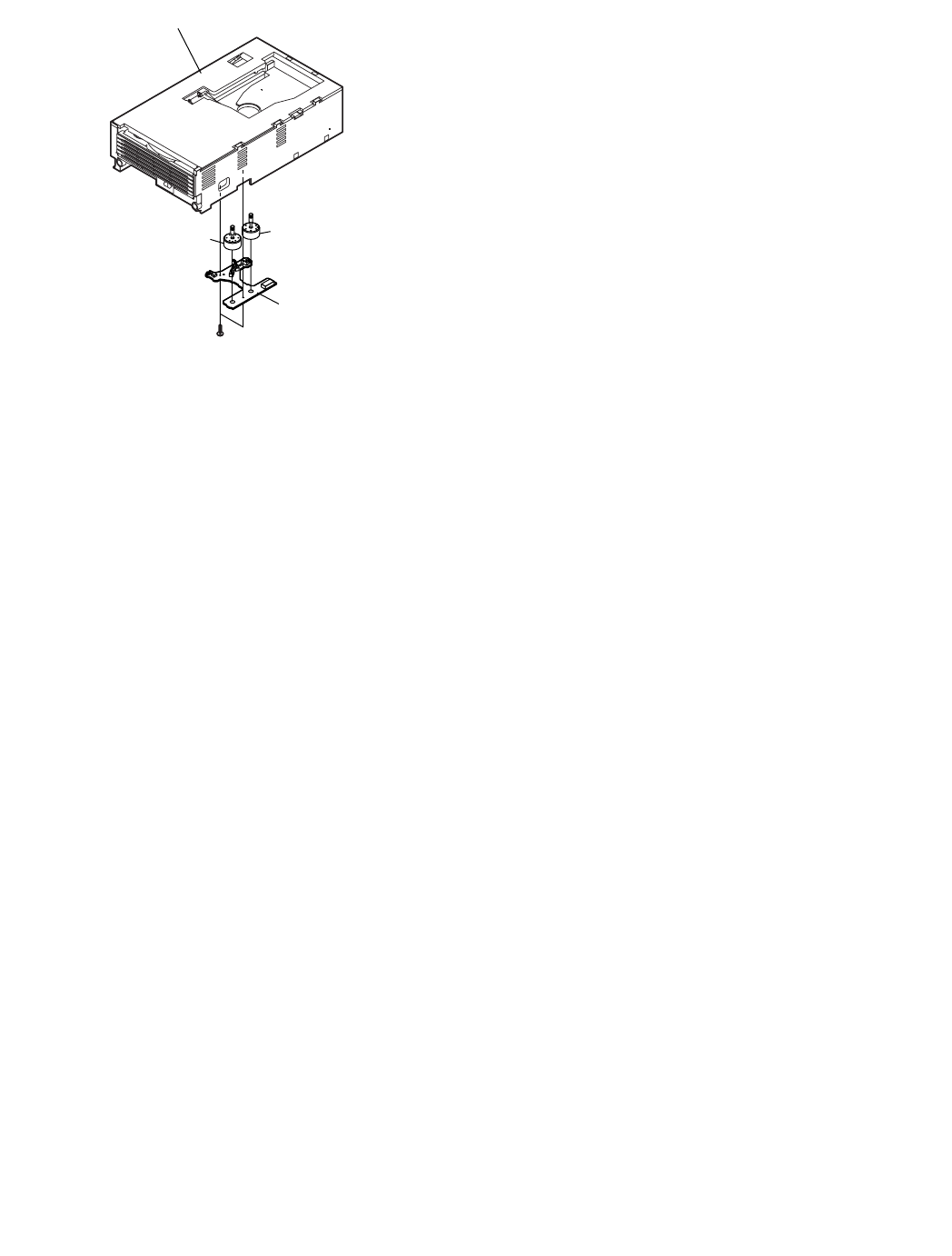

Figure 6

NOTE: There are 2 more screws tighten the motors at the bottom of

main chassis. Before performing procedure 1 above, disc stop

spring, top plate sear up down board and trays must be

removed, then only the 2 screws can be untighten.

5-Changer

Motor PWB

Tray Motor

Changer Mechanism Unit

Main Cam Motor

(A1)x2

φ2x10mm
